Aalberts Integrated Piping Systems PWR7482475 Apollo PowerPress Gas Stop End F 1/2 inches

Product Description

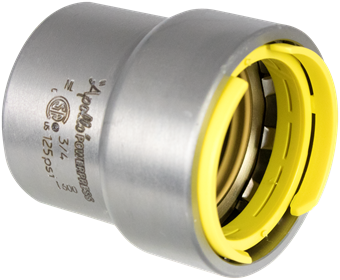

The Aalberts Integrated Piping Systems PWR7482475 Apollo PowerPress® 417G is an end cap designed for gas applications using thick wall steel pipe. The Apollo PowerPress® system reduces installation times and ensures a clean working environment. It features a press connection, a size of 1/2", and is constructed from steel with a zinc-nickel plated finish.

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

Designed for gas applications, this end cap ensures a secure and efficient connection with its press design and durable construction.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7482475
• Country of Origin: Netherlands

Technical Specifications

• brand: Apollo
• series: PowerPress Gas
• product type: 417G
• size: 1/2"
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: End coupling
• connection type: press (DW)
• sealing: HNBR
• product group: fittings
• ETIM class: EC003023 Fitting with 1 connection
• intrastat code: 73079980
• country of origin: Netherlands
• d1: 0.84
• DN1: 1/2"
• l1: 1.38
• z1: 0.28
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• System specific: Yes
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.3mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• Length of connection 1: 35mm
• Length of connection 1 (imperial): 1.38"
• Working length connection 1: 7mm
• Working length connection 1 (imperial): 0.28"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Nominal Size: 1/2 IN
• Series/Model: 417G
• Wall Thickness: 0.11 IN
• Additional Specifications: Includes: HNBR Sealing Elements, Capped and Connection Indicator
• Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified
• Item Name: Cap
• Material: Carbon Steel
• Outside Diameter: 0.84 IN
• Sub Brand: PowerPress®
• Temperature Rating: -40 - 194 DEG F
• Length: 1.4 IN
