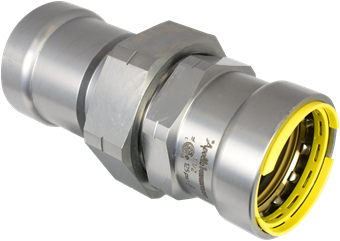

Aalberts Integrated Piping Systems PWR7482409 Apollo PowerPress Gas Straight Union FF 2 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7482409 Apollo PowerPress® 4733G is a union designed for natural gas applications using thick wall steel pipe. Installation times are significantly reduced with the Apollo PowerPress® Gas system, ensuring a clean working environment. It features a DW-profile press fitting suitable for sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress Gas straight union FF 2" is made of steel (St 35 (1.0308)) with zinc-nickel plating and HNBR sealing, designed for gas applications.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7482409
• Country of Origin: Netherlands

Technical Specifications

• label: d1
• value: 2.37
• DN1: 2"
• l1: 3.31
• z1: 1.21
• d2: 2.37
• DN2: 2"
• l2: 3.31
• z2: 1.21
• Color: grey
• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
• Shape: straight
• Connection type: press (DW)
• Sealing: HNBR
• Product group: fittings (unions)
• ETIM class: EC003024 Fitting with 2 connections
• Intrastat code: 73079980
• Country of origin: Netherlands
• Brand: Apollo
• Series: PowerPress Gas
• Product type: 4733G
• Article: Apollo PowerPress Gas straight union FF 2"
• Article number with gtin: PWR7482409 (08711985372526)
• Product number with gtin: PWR7482409 (08711985370041)
• Manufacturer: Aalberts integrated piping systems B.V. (VSH)
• Item group: 4733G - Apollo PowerPress Gas union (2 x press)
• Size: 2"
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 3-part
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.3mm
• Outer pipe diameter connection 1 (imperial): 2.37"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 60.3mm
• Outer pipe diameter connection 2 (imperial): 2.37"
• Wall thickness, connection 2: 3.4mm
• Wall thickness, connection 2 (imperial): 0.13"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 168mm
• Length (imperial): 6.61"
• Length of connection 1: 84.07mm
• Length of connection 1 (imperial): 3.31"
• Working length connection 1: 30.73mm
• Working length connection 1 (imperial): 1.21"
• Length of connection 2: 84.07mm
• Length of connection 2 (imperial): 3.31"
• Working length connection 2: 30.73mm
• Working length connection 2 (imperial): 1.21"
• Wrench width union nut: 85mm
• Wrench width union nut (imperial): 3.35"
• Medium temperature (continuous): -40°C - 90°C
• With thermal insulation: No
• With sealing rings/gaskets: Yes
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Nominal Size: 2 IN
• Temperature Rating: -40 - 194 DEG F
• Outside Diameter: 2.37 IN
