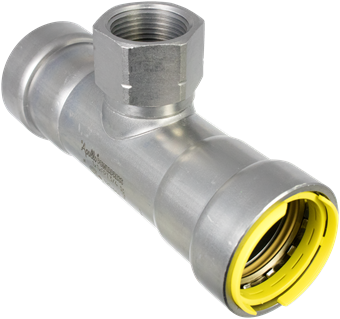

Aalberts Integrated Piping Systems PWR7481861 Apollo PowerPress Gas Threaded T-piece FFF 1 inchesx1 inchesxFPT1/2 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7481861 Apollo PowerPress Gas 4712G is a T-piece for natural gas applications, designed for thick wall steel pipe. The Apollo PowerPress Gas system significantly reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress Gas T-piece offers quick installation and a clean workspace. It provides excellent corrosion resistance and clear material identification.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481861
• Country of Origin: Netherlands

Technical Specifications

• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
• Shape: T-piece, reducer (90º)
• Connection type: press (DW), FPT - female thread conical (NPT), Press (DW)
• Sealing: HNBR
• Product group: fittings
• ETIM class: EC003025 Fitting with 3 connections
• Intrastat code: 73079980
• Brand: Apollo
• Series: PowerPress Gas
• Product type: 4712G
• UNSPSC: 40174602
• SCIP: d30775b1-132f-4657-80d3-acc91bda76c2
• Item group: 4712G - Apollo PowerPress Gas Tee w/female thread outlet/branch (press x female thread x press)
• Size: 1"x1"xFPT1/2"
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Material connection 3: Steel
• Material quality connection 3: St 35 (1.0308)
• Surface protection connection 3: Zinc/nickel
• Model: T-piece
• Angle: 90°
• Reducing: Yes
• Multi-part: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Wall thickness, connection 1: 2.9mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: 1/2 inch (15)
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Connection 2: Internal thread conical (NPT)
• Nominal diameter connection 3: DN 25
• Outer pipe diameter connection 3: 33.4mm
• Outer pipe diameter connection 3 (imperial): 1.31"
• Wall thickness, connection 3: 2.9mm
• Wall thickness, connection 3 (imperial): 0.11"
• Connection 3: Press sleeve
• Contour code connection 3: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• Length of connection 1: 66mm
• Length of connection 1 (imperial): 2.6"
• Working length connection 1: 30mm
• Working length connection 1 (imperial): 1.18"
• High tensile strength: Yes
• Length of connection 2: 46mm
• Length of connection 2 (imperial): 1.81"
• Working length connection 2: 30.2mm
• Working length connection 2 (imperial): 1.19"
• Length of connection 3: 66mm
• Length of connection 3 (imperial): 2.6"
• Working length connection 3: 30mm
• Working length connection 3 (imperial): 1.18"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• With thermal insulation: No
• With buffer stud: Yes
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
