Aalberts Integrated Piping Systems PWR7481848 3/4 x 1/2 CS Press Tee Gas HBNR

Product Description

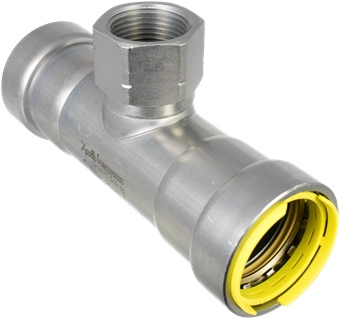

The Aalberts Integrated Piping Systems PWR7481848 Apollo PowerPress® 4712G is a T-piece for natural gas applications, designed for thick wall steel pipe. It features DW profile press fittings and valves in sizes 3/4 X 3/4 X 1/2 IN. The T-piece has press X press X FPT connection and 0.11 IN wall thickness.

• Outstanding corrosion-resistance due to ZnNi-coating
• Clear identification of materials and dimensions
• Visu control ring and leak before pressed function

Product Highlights

The Apollo PowerPress® gas system reduces installation times and assures a clean working environment. Includes HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481848

Technical Specifications

• Connection Type: Press X Press X FPT
• Item Name: Tee
• Length: 4.52 IN
• Nominal Size: 3/4 X 3/4 X 1/2 IN
• Series/Model: 4712G
• Temperature Rating: -40 - 194 DEG F
• Wall Thickness: 0.11 IN
• Additional Specifications: Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator
• Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified
• Material: Carbon Steel
• Outside Diameter: 1.05 X 0.84 X 1.05 IN
• Sub Brand: PowerPress®
