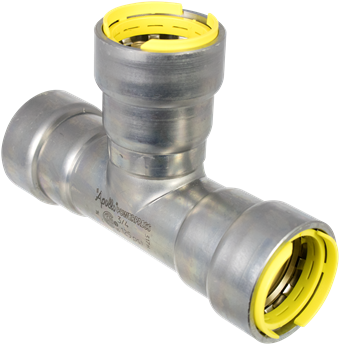

Aalberts Integrated Piping Systems PWR7481694 Apollo PowerPress Gas T-piece FFF 1 1/2 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7481694 Apollo PowerPress Gas 411G is a T-piece designed for natural gas applications using thick wall steel pipe. This T-piece ensures a clean working environment and reduces installation times. It features press connections and is suitable for sizes 1/2" up to 2".

• Corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress Gas T-piece offers quick installation and a secure connection for gas applications. It is made of steel with a zinc-nickel plated finish.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481694
• Country of Origin: Netherlands

Technical Specifications

• DN1: 1-1/2"
• l1: 3.48"
• z1: 1.56"
• d2: 1.90
• DN2: 1-1/2"
• l2: 3.50
• z2: 1.58
• d3: 1.90
• DN3: 1-1/2"
• l3: 3.48
• z3: 1.56
• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
• Shape: T-piece (90º)
• Connection type: press (DW), Press (DW)
• Sealing: HNBR
• Product group: fittings
• ETIM class: EC003025 Fitting with 3 connections
• Intrastat code: 73079980
• Brand: Apollo
• Series: PowerPress Gas
• Product type: 411G
• UNSPSC: 40174602
• Size: 1 1/2"
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Material connection 3: Steel
• Material quality connection 3: St 35 (1.0308)
• Surface protection connection 3: Zinc/nickel
• Model: T-piece
• Angle: 90°
• Reducing: No
• Multi-part: No
• System specific: Yes
• Nominal diameter connection 1: DN 40
• Outer pipe diameter connection 1: 48.3mm
• Outer pipe diameter connection 1 (imperial): 1.9"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 40
• Outer pipe diameter connection 2: 48.3mm
• Outer pipe diameter connection 2 (imperial): 1.9"
• Wall thickness, connection 2: 3.4mm
• Wall thickness, connection 2 (imperial): 0.13"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Nominal diameter connection 3: DN 40
• Outer pipe diameter connection 3: 48.3mm
• Outer pipe diameter connection 3 (imperial): 1.9"
• Wall thickness, connection 3: 3.4mm
• Wall thickness, connection 3 (imperial): 0.13"
• Connection 3: Press sleeve
• Contour code connection 3: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• Length of connection 1: 88.5mm
• Length of connection 1 (imperial): 3.48"
• Working length connection 1: 39.5mm
• Working length connection 1 (imperial): 1.56"
• High tensile strength: Yes
• Length of connection 2: 89mm
• Length of connection 2 (imperial): 3.5"
• Working length connection 2: 40mm
• Working length connection 2 (imperial): 1.57"
• Length of connection 3: 88.5mm
• Length of connection 3 (imperial): 3.48"
• Working length connection 3: 39.5mm
• Working length connection 3 (imperial): 1.56"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• With thermal insulation: No
• With buffer stud: Yes
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• d1: 1.90
• Connection Type: Press X Press X Press
• Wall Thickness: 0.13 IN
• Nominal Size: 1-1/2 IN
• Temperature Rating: -40 - 194 DEG F
• Outside Diameter: 1.9 X 1.9 X 1.9 IN
• Length: 6.96 IN
