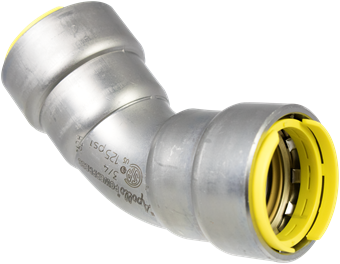

Aalberts Integrated Piping Systems PWR7481531 Apollo PowerPress Gas Bend 45° FF 1/2 inches

Product Description

The Aalberts Integrated Piping Systems PWR7481531 Apollo PowerPress® 406G is an elbow designed for gas applications using thick wall steel pipe. The Apollo PowerPress® system significantly reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes from 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress fitting is designed for gas applications, reduces installation time, and ensures a clean working environment.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481531
• Country of Origin: Netherlands

Technical Specifications

• DN1: 1/2"
• DN2: 1/2"
• Angle: 45
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Bend
• Model: 1-part
• Bend angle: 45°
• Radius: 0.98
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 0.84"
• Wall thickness, connection 1: 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 0.84"
• Wall thickness, connection 2: 0.11"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 2.2"
• Length of connection 1: 1.59"
• Working length connection 1: 0.49"
• Length of connection 2: 1.59"
• Working length connection 2: 0.49"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Bend radius: 25mm
• Bend radius (imperial): 0.98"
• d1: 0.84
• l1: 1.59
• z1: 0.49
• d2: 0.84
• l2: 1.59
• z2: 0.49
• Nominal Size: 1/2 IN
• Connection Type: Press X Press
• Item Name: 45 DEG Elbow
• Material: Carbon Steel
• Outside Diameter: 0.84 IN
• Series/Model: 406G
• Temperature Rating: -40 - 194 DEG F
• Wall Thickness: 0.11 IN
• Additional Specifications: Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator
• Finish/Color: Gray/Zinc Nickel-Plated
• Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified
• Sub Brand: PowerPress®
• Length (imperial): 2.2"
• Length of connection 1 (imperial): 1.59"
• Working length connection 1 (imperial): 0.49"
• Length of connection 2 (imperial): 1.59"
• Working length connection 2 (imperial): 0.49"
• Outer pipe diameter connection 1 (imperial): 0.84"
• Outer pipe diameter connection 2 (imperial): 0.84"
• Length mm: 56mm
• Length of connection 1 mm: 40.5mm
• Working length connection 1 mm: 12.5mm
• Length of connection 2 mm: 40.5mm
• Working length connection 2 mm: 12.5mm
