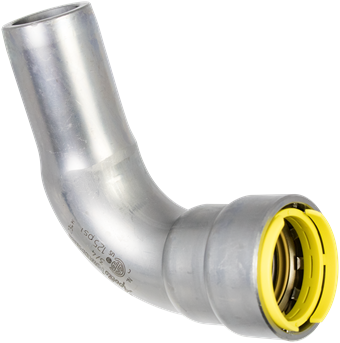

Aalberts Integrated Piping Systems PWR7481474 Apollo PowerPress Gas Bend 90° FØ 1/2 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7481474 Apollo PowerPress® 407-2G is a 90° bend designed for gas applications using thick wall steel pipe. The Apollo PowerPress® system reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes from 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This Apollo PowerPress gas bend offers a 90° angle and is suitable for gas applications, providing a reliable and efficient connection with its press and tube end connection types.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481474
• Country of Origin: Netherlands

Technical Specifications

• label: d1
• value: 0.84
• DN1: 1/2"
• l1: 2.17
• z1: 1.06
• d2: 0.84
• DN2: 1/2"
• l2: 2.70
• radius: 0.98
• angle: 90
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: Bend (90º)
• connection type: press (DW), tube end
• sealing: HNBR
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• country of origin: Netherlands
• brand: Apollo
• series: PowerPress Gas
• product type: 407-2G
• unsps: 40172802
• article: Apollo PowerPress Gas bend 90° FØ 1/2"
• article number with gtin: PWR7481474 (08711985369090)
• product number with gtin: PWR7481474 (08711985369090)
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• item group: 407-2G - Apollo PowerPress Gas street elbow 90° (press x insert)
• size: 1/2"
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Bend
• Model: 1-part
• Bend angle: 90°
• Bend radius: 25mm
• Bend radius (imperial): 0.98"
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.3mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 21.3mm
• Connection 2: Soldered end
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 66mm
• Length (imperial): 2.6"
• Length of connection 1: 55mm
• Length of connection 1 (imperial): 2.17"
• Working length connection 1: 27mm
• Working length connection 1 (imperial): 1.06"
• Length of connection 2: 68.5mm
• Length of connection 2 (imperial): 2.7"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
