Aalberts Integrated Piping Systems 73A10427A Ball Valve 3/4 A105 CS THRD

Product Description

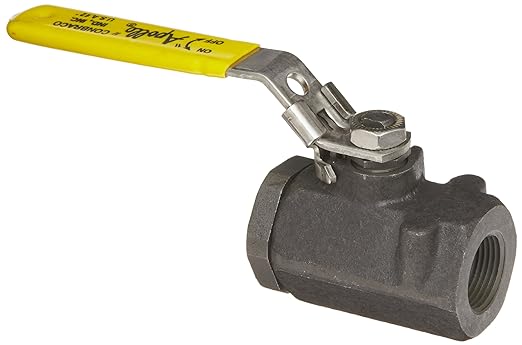

The AALBERTS INTEGRATED PIPING SYSTEMS 73A10427A ball valve is a threaded carbon steel ball valve with a standard port. It features forged construction and raised handle stops. Designed with a blowout-proof stem and adjustable packing gland, it also offers zinc phosphate corrosion protection. Suitable for gas and water media with a standard port.

• Forged construction
• Raised handle stops
• Blowout-proof stem design
• Adjustable packing gland
• Zinc phosphate corrosion protection

Product Highlights

This 3/4 inch ball valve is made from A105 carbon steel with threaded ends and a locking handle. It is MSS SP-110 compliant and AAR approved.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: 73A10427A
• Country of Origin: United States

Technical Specifications

• DN1: 3/4"
• DN2: 3/4"
• size: 3/4"
• materials: steel (ASTM A105-CS)
• shape: straight
• connection type: FPT - female thread conical (NPT), FPT - female thread conical (NPT)
• max operating pressure liquid: 137.9 bar
• min. medium temperature: -28.89 cel
• max medium temperature: 287.78 cel
• ETIM class: EC011343 Ball valve
• brand: Apollo
• series: 73A Series Ball Valves
• Housing material: Steel
• Surface protection housing: None
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Nominal diameter connection 1: DN 20
• Outer pipe diameter connection 1: 26.67mm
• Outer pipe diameter connection 1 (imperial): 1.05"
• Connection 1: Internal thread conical (NPT)
• With coupling connection 1: No
• Nominal diameter connection 2: DN 20
• Outer pipe diameter connection 2: 26.67mm
• Outer pipe diameter connection 2 (imperial): 1.05"
• Connection 2: Internal thread conical (NPT)
• With coupling connection 2: No
• With filter: No
• With thermometer: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medium temperature (continuous): -28.89°C - 278.78°C
• Medium temperature (continuous) (imperial): -20.002°F - 533.804°F
• Medically clean: No
• Grease-free: No
• Operation: Lever handle
• Housing construction: 2-part
• Full bore: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Actuator Type: Latch-Lock Lever
• Ball Material: Chrome Plated Carbon Steel
• Body Material: Forged Carbon Steel
• Domestic/Import: Domestic
• End Style: Threaded
• Inlet to Outlet Length: 3.07 in
• Media: Gas/Water
• Nominal Size: 3/4 in
• Orifice Size: 0.68 in
• Port Type: Standard
• Pressure Rating: 2000 psi CWP
• Trim Material: Carbon Steel/RPTFE
• Type: Ball Valve
• Series: 73-100
• Option: SS Lever & Nut
• Manufacturer: Aalberts Integrated Piping Systems
