Aalberts 94ALF10801A Apollo 94ALF-A Full Port Brass Ball Valve, 2 inch, NPT x NPT

Product Description

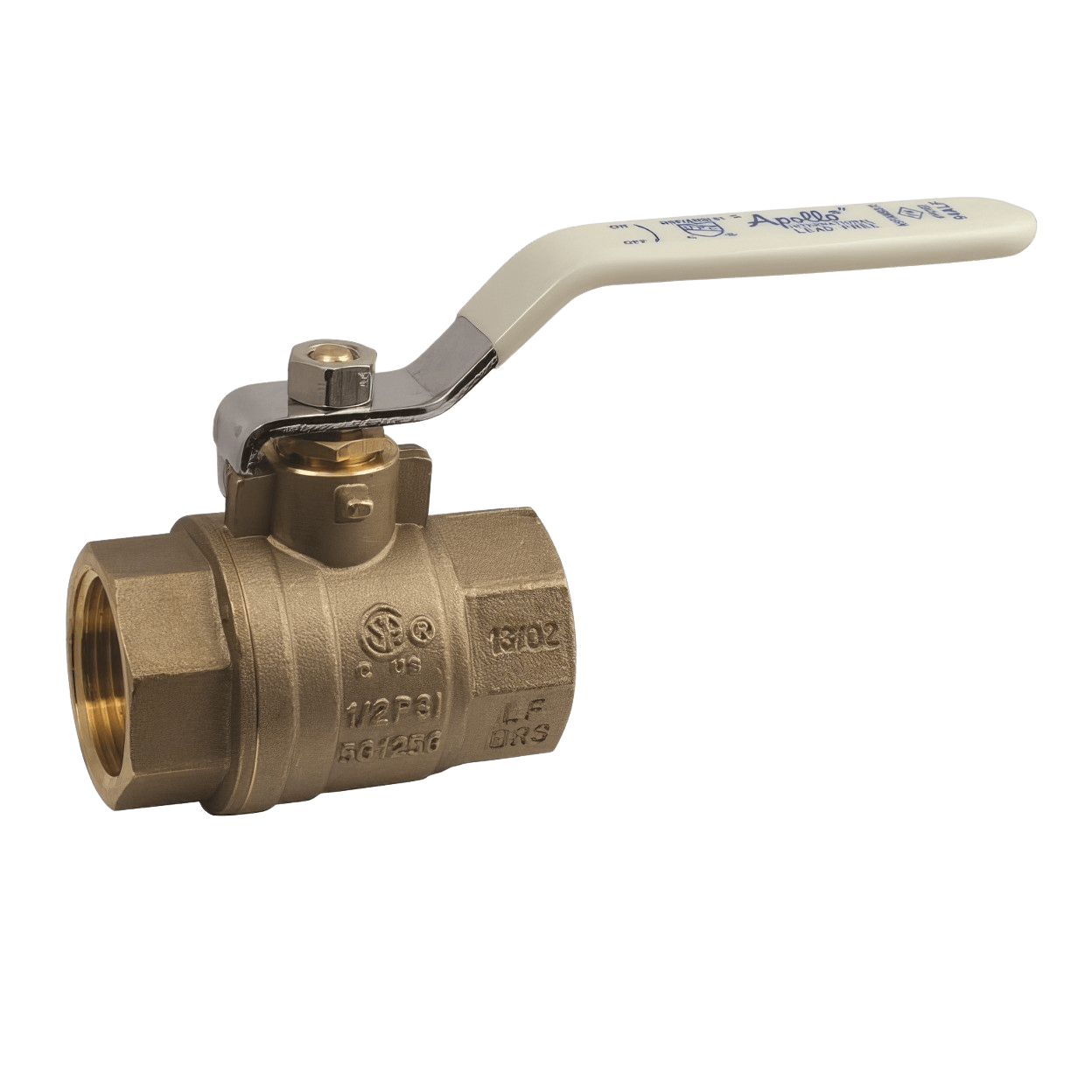

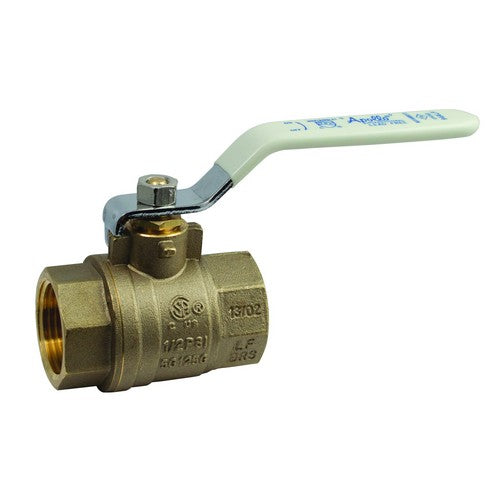

The Aalberts 94ALF-A Full Port Brass Ball Valve, MPN 94ALF10801A, is designed for efficient flow control in various plumbing applications. This ball valve features a two-inch nominal size and a durable NPT x NPT connection. It is suitable for use with gas, fuels, fire protection, and potable water systems. The valve is constructed from lead-free brass (DZR) and includes a stainless steel ball and PTFE seals for reliable performance.

• Max. pressure of four hundred psi CWP.
• Temperature rating from -20 to 366 degrees Fahrenheit.
• Two-port design with an opening size of 1.97 inches.

Product Highlights

This valve is ideal for HVAC and general plumbing needs. It is ANSI certified for lead-free materials, ensuring safety and compliance in installations.

Product Information

Standard Information

• Series: 94ALF-A
• Type: Full Port

Technical Specifications

• Nominal Size: 2 inch
• Connection Type: NPT x NPT
• Opening Size: 1.97 inch
• Body Material: Lead Free Brass (DZR)
• Ball Material: 316 Stainless Steel
• Seat: PTFE
• Seal: PTFE
• Packing: PTFE
• Temperature Rating: -20 to 366 Deg F
