Product Description

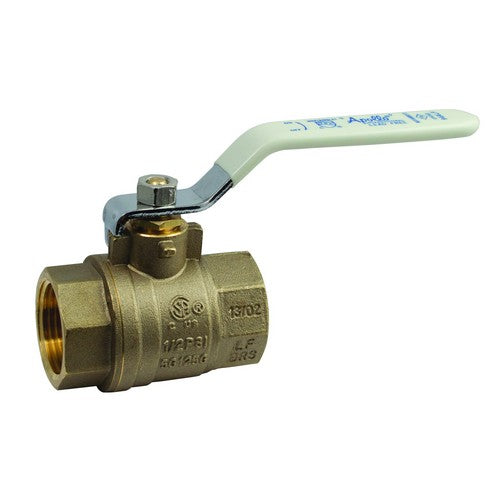

The Aalberts 94ALF10401A is a full port brass ball valve designed for various plumbing applications. This valve is compatible with NPT x NPT connections and has a nominal size of three-quarters of an inch. It is capable of withstanding a maximum pressure of six hundred psi. The lead-free brass body and components ensure safe use in drinking water systems.
- Full port design for maximum flow
- Lead-free construction for safe drinking water
- Temperature rating from negative twenty to three hundred sixty-six degrees Fahrenheit
Product Highlights
This valve is suitable for HVAC systems, fuel lines, and general plumbing tasks. It features a PTFE seat and seal for durability and reliability under pressure.
Product Information
Standard Information
-
Brand: Aalberts
-
MPN: 94ALF10401A
Technical Specifications
-
Series: 94ALF-A
-
Type: Full Port
-
Nominal Size: 3/4 inch
-
Connection Type: NPT x NPT
-
Opening Size: 0.75 inch
-
Body Material: Lead Free Brass (DZR)
-
Seat: PTFE
-
Ball Material: Lead Free Chrome Plated Brass (DZR)
-
Seal: PTFE
-
Stem: C36000 Brass
-
Packing: PTFE
-
Temperature Rating: -20 to 366 Deg F
-
Dimensions: Dimension B: 2.36 inch; Dimension C: 2.11 inch; Dimension D: 3.78 inch
