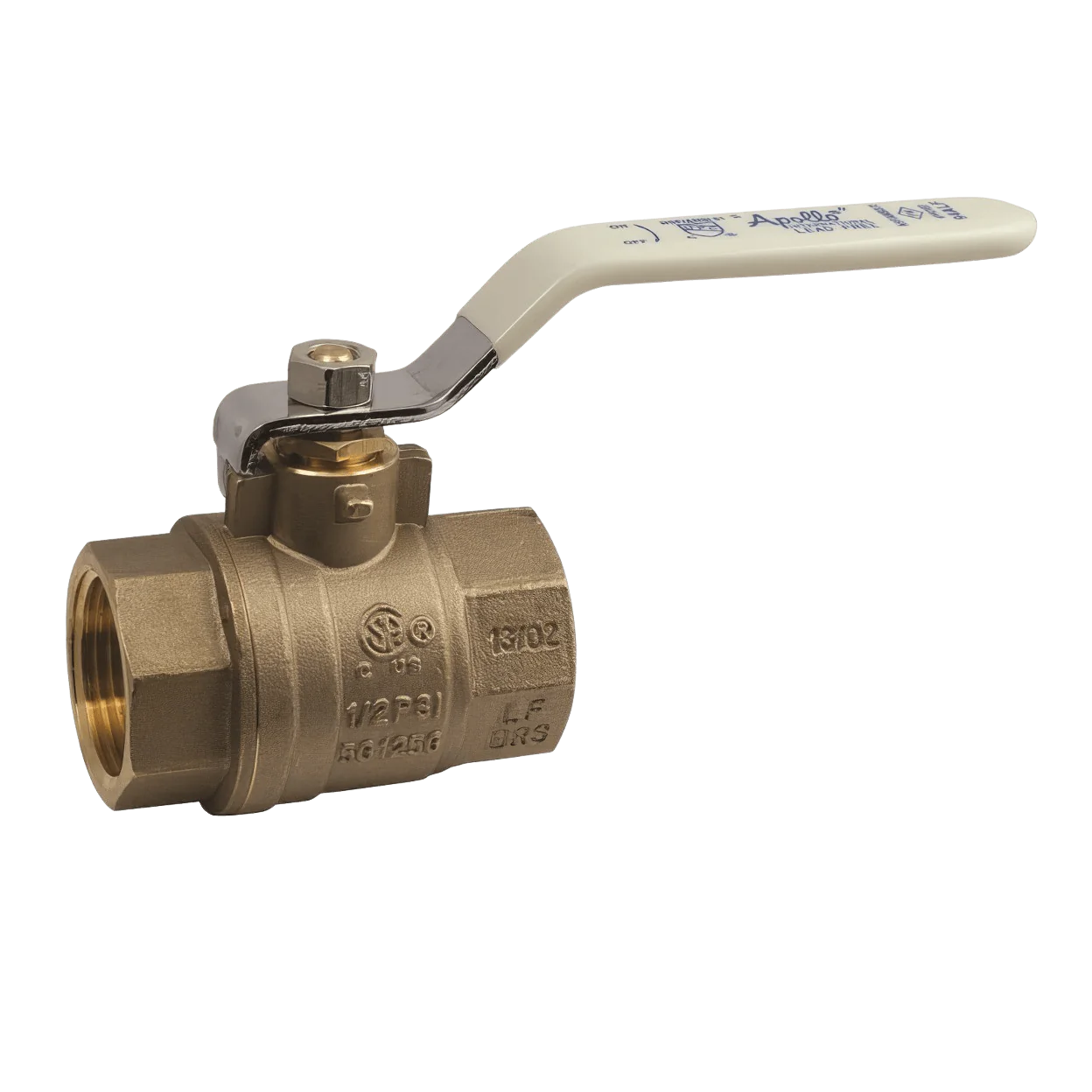

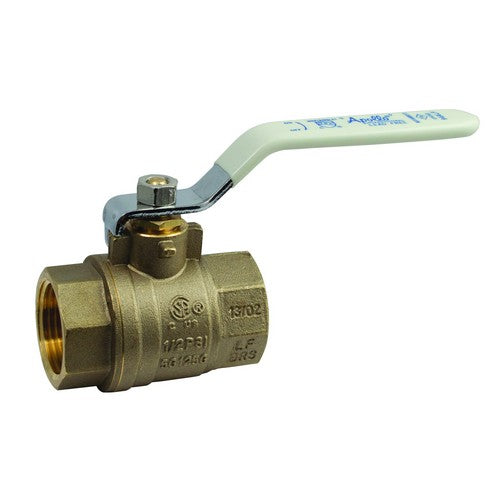

Aalberts 94ALF10301A Apollo 94ALF-A Full Port Brass Ball Valve, 1/2 inch, NPT x NPT

Product Description

The Aalberts 94ALF10301A is a full port brass ball valve designed for reliable operation in various plumbing and HVAC applications. This valve features a nominal size of one-half inch with NPT connections, providing a secure fit and efficient flow control.

• Lead Free brass construction
• Operates at a maximum pressure of 600 psi
• Temperature rating from -20 to 366 degrees Fahrenheit

Product Highlights

The Apollo 94ALF-A valve is ideal for gas applications, fire protection, and potable water use. It features a blow-out proof stem design and adjustable packing nut for long service life.

Product Information

Standard Information

• Brand: Aalberts
• MPN: 94ALF10301A

Technical Specifications

• Series: 94ALF-A
• Type: Full Port
• Nominal Size: 1/2 inch
• Connection Type: NPT x NPT
• Opening Size: 0.59 inch
• Body Material: Lead Free Brass (DZR)
• Seat: PTFE
• Ball Material: Lead Free Chrome Plated Brass (DZR)
• Seal: PTFE
• Stem: C36000 Brass
• Packing: PTFE
• Temperature Rating: -20 to 366 Deg F
• Max Pressure: 600 psi CWP
• No. of Ports/Ways: 2
• Dimensions: Dimension B: 2.05 inch; Dimension C: 1.94 inch; Dimension D: 3.54 inch
