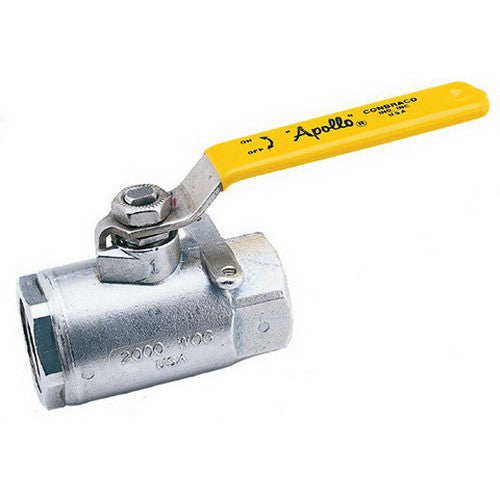

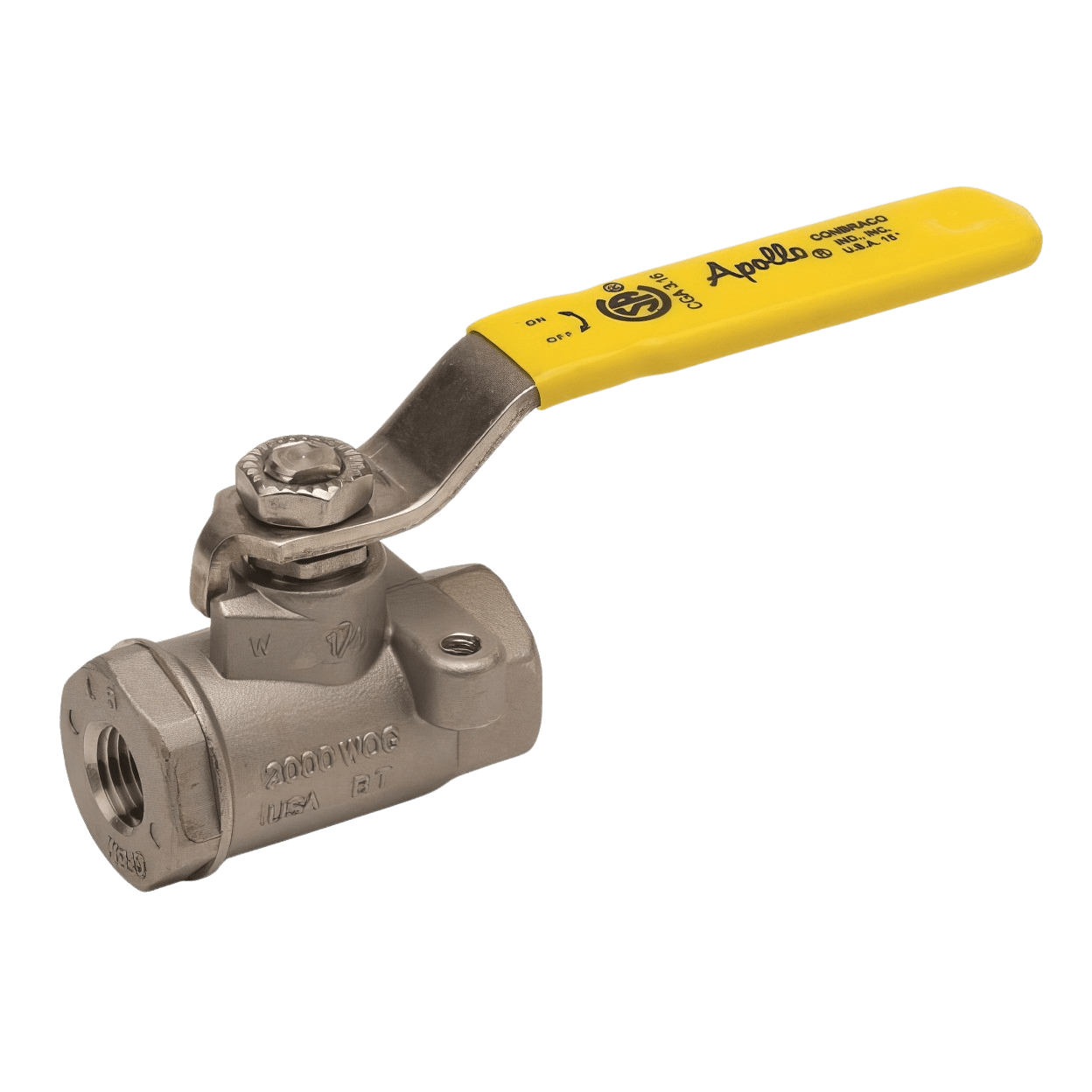

Aalberts 7610727 Apollo 76-100 Standard Port Stainless Steel Ball Valve with Stainless Steel Latch-Lock Lever and Nut, 1-1/2 inch, FNPT x FNPT

Product Description

The Aalberts 7610727 Apollo 76-100 is a stainless steel ball valve designed for plumbing applications. This model features a stainless steel latch-lock lever and nut with a nominal size of one and one half inches. It has FNPT x FNPT connections and is built to handle cold water service with a maximum pressure of 1500 psi and steam pressure of up to 150 psi.

• Two-piece construction for durability
• 1500 psi cold non-shock maximum pressure
• Stainless steel body and ball for corrosion resistance

Product Highlights

This valve is suitable for applications that require reliable shut-off, making it ideal for plumbing systems. Its stainless steel construction and RPTFE seat ensure long-lasting performance.

Product Information

Standard Information

• Body Material: A351 CF8M Stainless Steel
• Ball Material: A276 Type 316 Stainless Steel

Technical Specifications

• Series: 76-100
• Type: Standard Port
• Nominal Size: 1-1/2 inch
• Connection Type: FNPT x FNPT
• Opening Size: 1.25 inch
• Seat: RPTFE
• Seal: PTFE
• Packing: MPTFE
• Actuation/Operator: Stainless Steel Latch-Lock Lever with Nut
• Construction: 2-Piece, With Mounting Pad
• Max. Pressure: 1500 psi CWP
• Max. Steam Pressure: 150 psi SWP
