Product Description

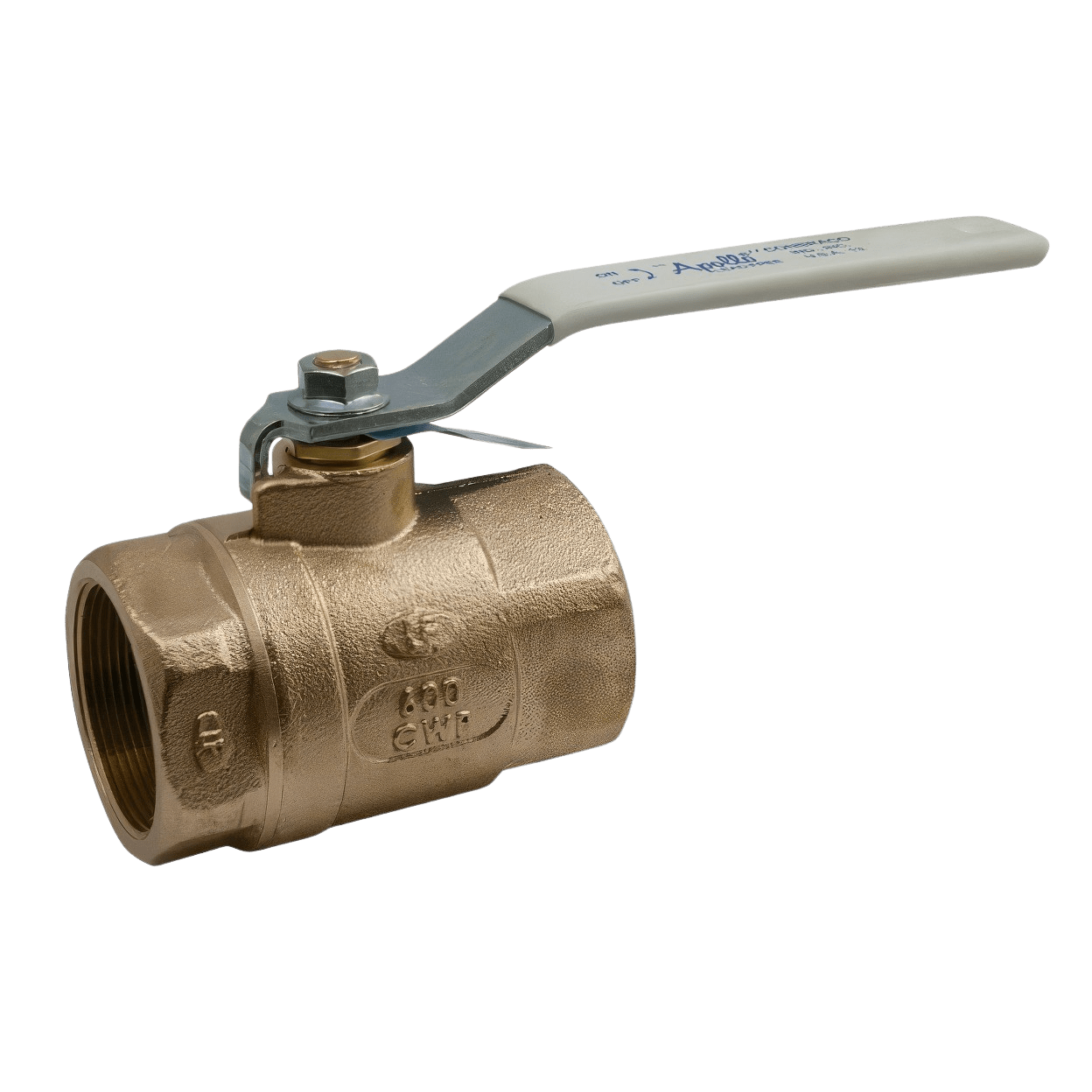

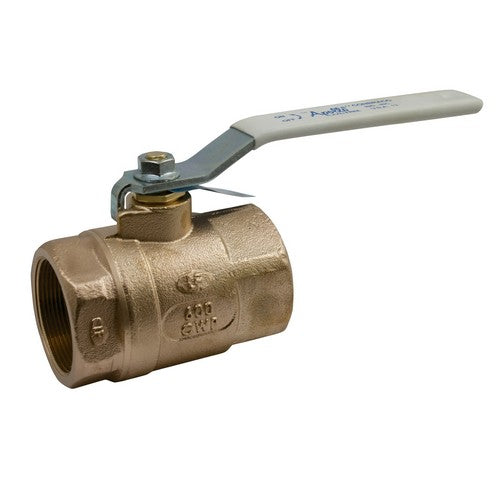

The Aalberts 70LF10827 is a reliable bronze ball valve designed for plumbing systems. This valve features a stainless steel latch-lock lever for secure operation. It has a nominal size of two inches with FNPT x FNPT connections.
- Standard port design
- Lead free construction for safety
- High pressure rating of 600 psi CWP
Product Highlights
This valve is suitable for both residential and commercial plumbing and heating systems, including potable water applications.
Product Information
Standard Information
-
Manufacturer: Aalberts
-
Part Number: 70LF10827
Technical Specifications
-
Type: Standard Port
-
Nominal Size: 2 inch
-
Connection Type: FNPT x FNPT
-
Max. Pressure: 600 psi CWP
-
Max. Steam Pressure: 150 psi SWP
-
Opening Size: 1.5 inch
-
Body Material: C89836 Lead Free Bronze
-
Ball Material: Lead Free Chrome Plated Brass (C27451)
-
Seat: RPTFE
-
Stem: C27451 Lead Free Brass, RPTFE (Bearing)
-
Packing: RPTFE
-
Construction: 2-Piece
-
Actuation/Operator: Stainless Steel Latch-Lock Lever with Nut
-
Temperature Rating: 450 Deg F
-
Dimensions: Dimension B: 2.34 inch; Dimension C: 4.68 inch; Dimension D: 3.25 inch; Dimension E: 8 inch
