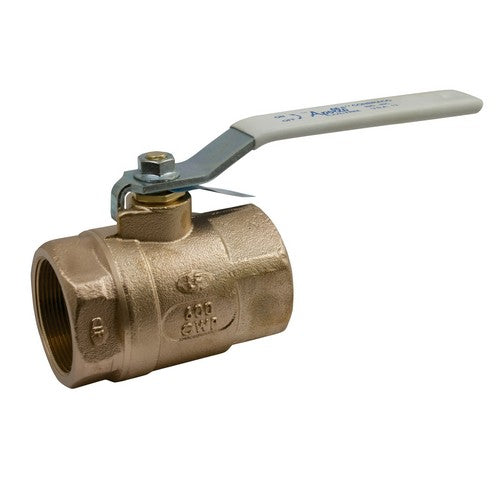

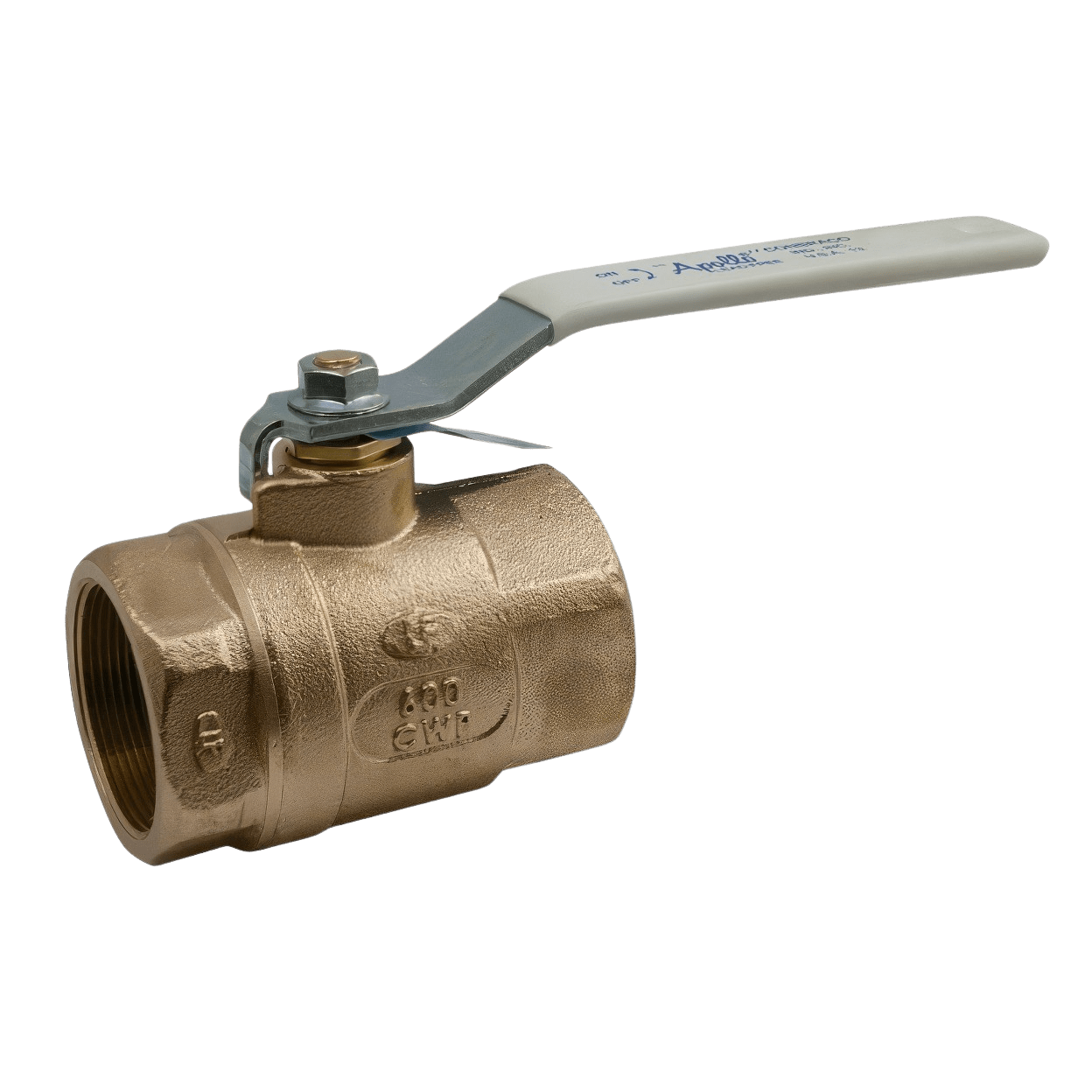

Aalberts 70LF10301 Apollo 70LF-100 Standard Port Bronze Ball Valve 1/2 inch FNPT x FNPT

Product Description

The Aalberts 70LF10301 Apollo 70LF-100 Standard Port Bronze Ball Valve is designed for plumbing applications. This valve features a nominal size of one-half inch with FNPT x FNPT connections. It withstands a maximum pressure of six hundred psi and is suitable for water and steam systems.

• Lead Free Bronze Construction
• Maximum Temperature Rating: 450 Deg F
• Actuation via Lever Handle

Product Highlights

This ball valve is ideal for a variety of plumbing and heating systems.

Product Information

Standard Information

• Brand: Aalberts
• MPN: 70LF10301

Technical Specifications

• Series: 70LF-100
• Type: Standard Port
• Nominal Size: 1/2 inch
• Connection Type: FNPT x FNPT
• Opening Size: 0.5 inch
• Body Material: C89836 Lead Free Bronze
• Ball Material: Lead Free Chrome Plated Brass (C27451)
• Seat: RPTFE
• Stem: C27451 Lead Free Brass, RPTFE (Bearing)
• Packing: RPTFE
• Construction: 2-Piece
• Actuation/Operator: Lever Handle
• Temperature Rating: 450 Deg F
• Max. Pressure: 600 psi CWP
• Max. Steam Pressure: 150 psi SWP
• Dimensions: Dimension B: 1.12 inch; Dimension C: 2.25 inch; Dimension D: 1.75 inch; Dimension E: 3.87 inch
