Aaf/flanders 10055.0183 Fiberglass Furnace Filter 8x30x1 Merv 4

Product Description

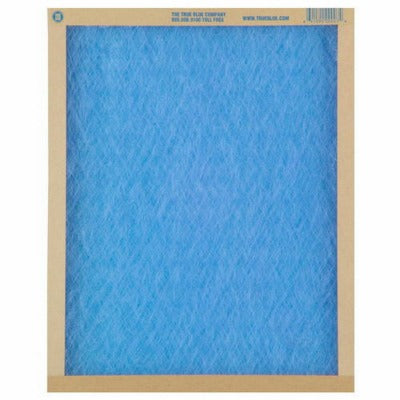

The AAF/FLANDERS 10055.0183 is a flat-panel, disposable spun fiberglass furnace filter measuring 8 inches by 30 inches by 1 inch. Rated up to MERV 4, it provides basic mechanical filtration suited for residential forced-air heating systems. The EZ Flow II design uses spun fiberglass media without metal media retainers, keeping the construction lightweight and straightforward to handle. It is intended as a 30-day replacement filter, making it a high-change-frequency option for systems where low static pressure drop is the priority over fine particulate capture. HVAC technicians and facilities maintenance staff install this filter during routine service calls or seasonal system startups.

This filter is used in residential and light commercial gas furnaces, air handlers, and forced-air systems that accept a flat-panel 1-inch filter in an 8-by-30-inch nominal slot. Its MERV 4 rating makes it effective against larger airborne particles including dust and lint. It is commonly specified in applications where maintaining high airflow and minimizing system restriction takes precedence over allergen or fine-particle filtration. The 30-day service interval suits high-dust environments or systems that require frequent filter rotation.

Key Features

• Spun fiberglass flat-panel media rated up to MERV 4
• Effective against dust and lint particles
• No metal media retainers for easy, safe disposal
• 30-day recommended replacement interval
• Nominal size 8 inches x 30 inches x 1 inch fits standard filter slots
• Sold in a package quantity of 12 units

Compatibility

Designed as an OEM-style replacement flat-panel furnace filter for residential and light commercial forced-air systems accepting a nominal 8 inches x 30 inches x 1 inch filter slot.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified maintenance personnel. Always shut down the furnace or air handler at the system disconnect or thermostat before replacing the filter. Verify airflow direction arrows on the filter frame align with the direction of airflow through the system before securing the access panel. Dispose of the used fiberglass filter in accordance with local waste-handling requirements.

Technical Specifications

• Filter Media: Spun Fiberglass
• MERV Rating: Up to MERV 4
• Filter Style: Flat Panel
• Nominal Dimensions: 8 inches x 30 inches x 1 inch
• Service Interval: 30 days
• Metal Media Retainers: None
• Package Quantity: 12 per case
• Weight: 4.89 pounds

Standard Information

• Brand: AAF/FLANDERS
• Manufacturer Part Number: 10055.0183
