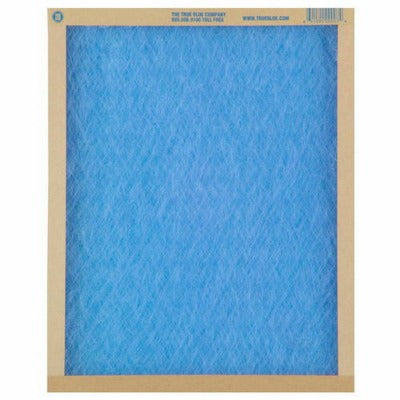

Aaf/flanders 10055.01183 Merv 4 Furnace Filter 18x30x1

Product Description

The AAF/FLANDERS 10055.01183 is a flat-panel spun fiberglass disposable furnace filter rated at MERV 4. Measuring 18 inches by 30 inches by 1 inch, it is designed for residential forced-air heating and cooling systems where basic particulate capture and unrestricted airflow are the priorities. The filter uses spun fiberglass media with no metal media retainers, making disposal straightforward at the end of its 30-day service life. It ships in a package of 12 units. HVAC technicians and facility maintenance personnel install this filter in standard 1-inch filter tracks on furnaces and air handlers.

This filter is suited for residential and light commercial forced-air applications where a low-resistance, economy-grade filter is acceptable. The MERV 4 rating makes it effective against large airborne particles including dust and lint. It is commonly installed in furnaces, air handlers, and return-air grilles that accept a 1-inch flat-panel filter. The 30-day replacement interval is typical for high-traffic environments or systems running continuously during peak heating and cooling seasons.

Key Features

• MERV 4 filtration effective against dust and lint
• Spun fiberglass flat-panel media with no metal retainers for easy disposal
• 30-day recommended replacement interval
• 1-inch depth fits standard residential filter tracks
• Packaged 12 filters per case for stocking efficiency

Compatibility

Designed as an OEM-style replacement for residential and light commercial forced-air furnaces and air handlers that accept a standard 18-inch by 30-inch by 1-inch flat-panel filter.

Installation Notes

A licensed HVAC technician or qualified maintenance professional should shut down the furnace or air handler at the thermostat and disconnect power at the disconnect switch before servicing the filter. Verify airflow direction markings on the filter frame and align the arrow with the direction of airflow toward the blower. At MERV 4 and a 30-day service life, inspect the filter at or before the 30-day mark and replace promptly to avoid restricted airflow or blower strain.

Technical Specifications

• Filter Dimensions: 18 x 30 x 1 inches
• MERV Rating: 4
• Media Type: Spun fiberglass
• Filter Style: Flat panel
• Metal Media Retainers: None
• Recommended Service Life: 30 days
• Package Quantity: 12 per case
• Package Weight: 6.3 pounds

Standard Information

• Brand: AAF/FLANDERS
• Manufacturer Part Number: 10055.01183
