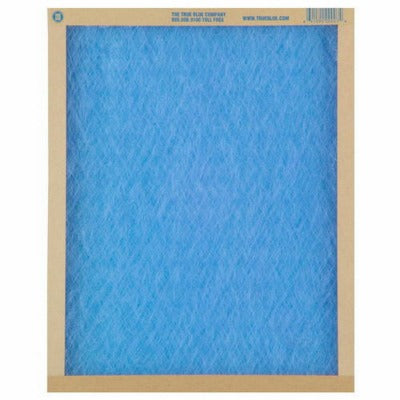

Aaf/flanders 10055.01163 Furnace Filter 16x30x1 Merv 4

Product Description

The AAF/FLANDERS 10055.01163 is a flat-panel spun fiberglass disposable furnace filter rated at MERV 4. It measures 16 inches by 30 inches by 1 inch and ships in a case of 12. Designed for 30-day service intervals, it provides baseline filtration of airborne dust and lint in residential forced-air heating and cooling systems. The flat-panel design has no metal media retainers, which simplifies disposal at the end of its service life. HVAC technicians and facilities maintenance personnel use this filter where high-volume changeout frequency or budget-conscious filtration is the priority. This case pack of 12 units supports scheduled maintenance routes without repeat ordering.

This filter is suited for residential gas furnaces, heat pumps, and central air handlers that accept a 16-inch by 30-inch by 1-inch filter slot. Flat-panel fiberglass filters at MERV 4 are a common fit in older equipment with lower static pressure tolerances, as well as in commercial or light-industrial applications requiring frequent changeouts. The spun fiberglass media captures larger particulates including household dust and lint, making it appropriate for standard residential environments without pets or elevated allergen concerns.

Key Features

• MERV 4 spun fiberglass media captures dust and lint particles
• Flat-panel construction with no metal media retainers for easy, tool-free disposal
• Nominal size 16 inches x 30 inches x 1 inch fits standard residential filter slots
• 30-day recommended service interval keeps maintenance schedules predictable
• Case of 12 filters supports multi-unit or route-based service programs
• Low-resistance media compatible with older systems and equipment with restricted static pressure budgets

Compatibility

Designed as an OEM-style replacement flat-panel furnace filter for residential and light-commercial forced-air systems requiring a 16 x 30 x 1 inch filter.

Installation Notes

Filter installation and replacement should be performed by a qualified HVAC technician or a knowledgeable DIYer following the equipment manufacturer's guidelines. Set the system thermostat to the off position and shut down power to the air handler or furnace at the disconnect before accessing the filter compartment. Confirm airflow direction markings on the filter frame align with the system airflow arrow before closing the compartment door. Dispose of the used fiberglass filter in accordance with local waste regulations; do not attempt to clean or reuse disposable fiberglass media.

Technical Specifications

• Filter Dimensions: 16 x 30 x 1 inches
• MERV Rating: 4
• Media Type: Spun fiberglass
• Filter Style: Flat panel
• Metal Media Retainers: None
• Recommended Service Interval: 30 days
• Package Quantity: 12 per case
• Package Weight: 9.3 pounds
• Unit of Measure: EA

Standard Information

• Brand: AAF/FLANDERS
• Manufacturer Part Number: 10055.01163
