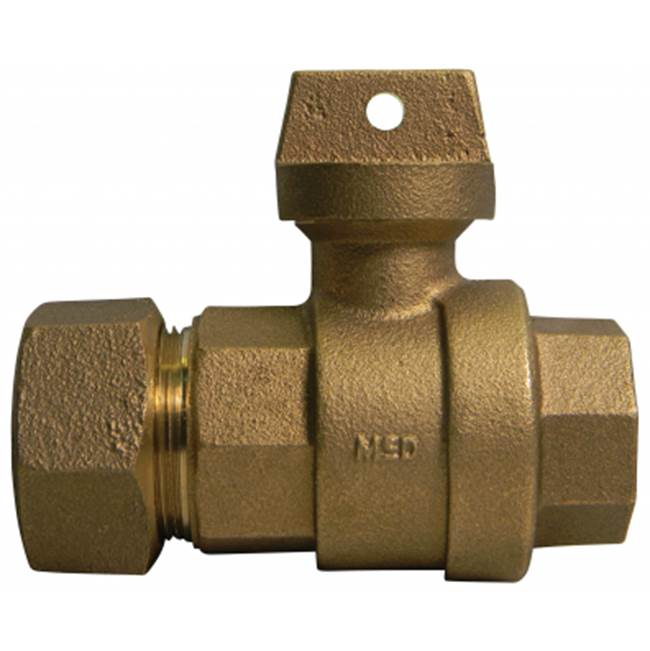

A Y MCDONALD MFG CO 5131-110 76102T 2 BALL CURB CTS X FNPT - NL

Product Description

A Y McDonald MFG CO presents the 5131-110, a ball style curb stop designed for efficient water control. This unit features a straight regular pattern with a nominal size of 2 inches. It is constructed with PTFE coated brass for reliable operation and includes a brass body and EPDM softgoods. This curb stop is suitable for CTS PE COMP to FNPT connections and can withstand a pressure rating of 300 psig.

• Brass components conform to industry standards for potable water.
• Features blow-out proof EPDM port seals for enhanced safety.
• Includes an EPDM O-ring and thread locker for a secure end piece joint.

Product Highlights

This curb stop is designed for use in plumbing applications, helping to control and manage water flow in residential or commercial settings.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Model: 5131-110

Technical Specifications

• Ball Material: PTFE Coated Brass
• Body Material: Brass
• End Style: CTS PE COMP x FNPT
• Nominal Size: 2 inches
• Pressure Rating: 300 psig
• Softgoods Material: EPDM
• Top to Inlet Center: 3.7 inches
• Type: Straight Regular Pattern
