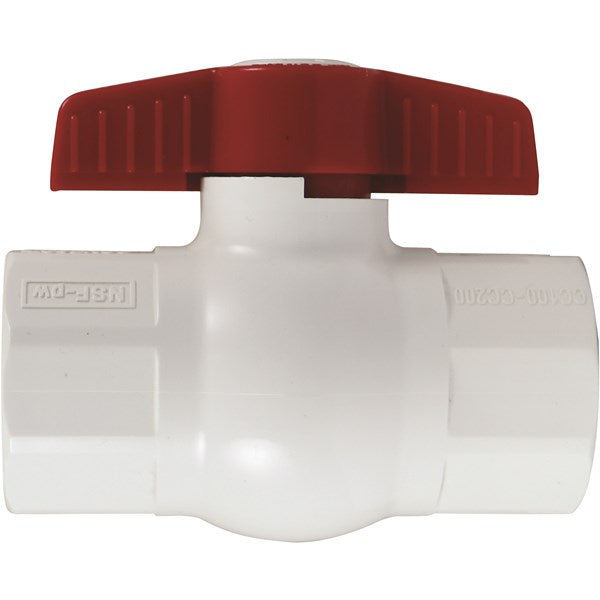

A Y MCDONALD MFG CO 4421-021 2060T 1 PVC BALL VALVE-FNPT

Product Description

A Y McDonald MFG CO offers the 4421-021 2060T one inch PVC ball valve with FNPT ends. This durable valve is rated for a maximum pressure of fifty psi and a temperature of one hundred forty degrees Fahrenheit. It is suitable for water media and features a PVC ball and body for reliable service.

• Standard SCH 80/XH specifications
• 150 psi rating at seventy-three degrees Fahrenheit
• Contains less than 0.25% lead, compliant with safe drinking water standards

Product Highlights

The 2060T ball valve is designed for a variety of applications including commercial and residential uses. It features EPDM O-ring and PTFE seat seals for optimal performance.

Product Information

Standard Information

• Manufacturer: A Y MCDONALD MFG CO
• UPC: 053565228853

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: 4.17 inches
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 50 psi
• Series: 2060T
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2.56 inches
