A Y MCDONALD MFG CO 4421-020 2060T 3/4 PVC BALL VALVE-FNPT

Product Description

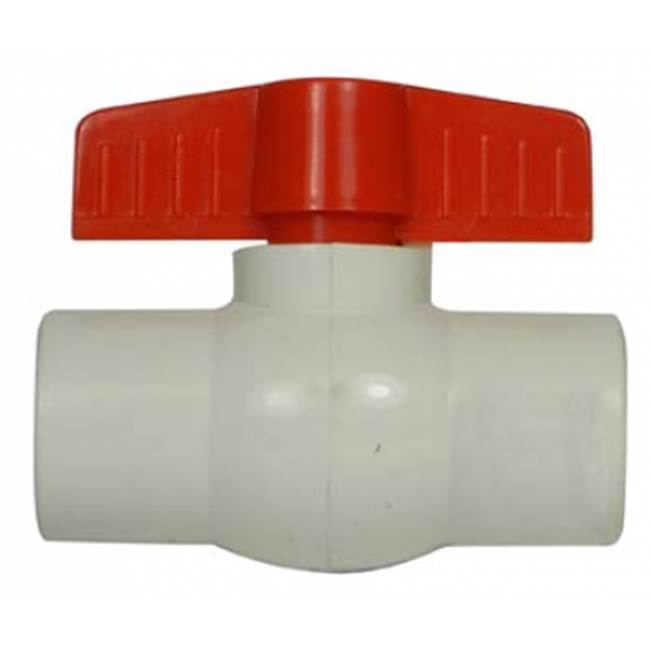

A Y McDonald MFG CO 4421-020 is a 3/4 inch PVC ball valve with FNPT connections. This valve is designed for water media and operates at a pressure rating of 50 psi. It features a PVC body and EPDM/PTFE soft goods, making it a reliable choice for various plumbing applications.

• Standard SCH 80/XH specification
• Operates at 150 psi at seventy-three degrees Fahrenheit
• Contains less than 0.25% lead in wetted surfaces

Product Highlights

This valve is suitable for commercial, industrial, and residential installations.

Product Information

Standard Information

• Product Name: 2060T 3/4 PVC Ball Valve-FNPT
• Manufacturer: A Y MCDONALD MFG CO

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: 3.54 inches
• Media: Water
• Nominal Size: 3/4 inches
• Pressure Rating: 50 psi
• Series: 2060T
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2.05 inches
