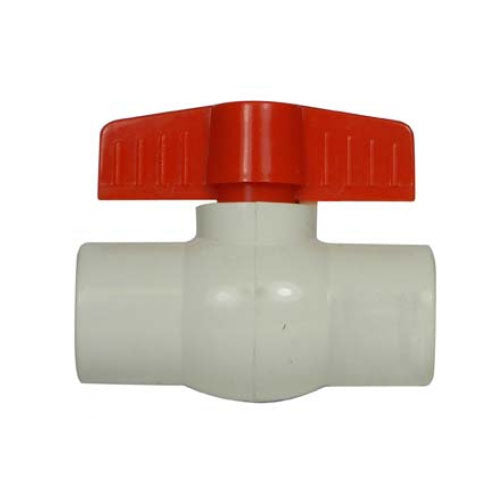

A Y McDonald Mfg Co 4421-013 2060S 1/2 PVC Ball Valve-Socket

Product Description

The A Y McDonald Mfg Co 4421-013 is a 1/2 inch PVC ball valve designed for a variety of plumbing applications. This valve is built to handle water with a pressure rating of 150 psi. It features a solvent end style which fits schedule 40 and schedule 80 PVC pipes. With a length of 3.07 inches from inlet to outlet, it is suitable for residential, commercial, and industrial use.

• Constructed from PVC for durability
• Contains less than 0.25% lead in the wetted surface
• PTFE seat/seal and EPDM O-ring for reliable sealing

Product Highlights

Ideal for reliable water supply management, this valve is built with a handle actuator for easy operation.

Product Information

Standard Information

• Brand: A Y McDonald Mfg Co
• Manufacturer: A Y McDonald Mfg Co

Technical Specifications

• Actuator Type: Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: Solvent
• Inlet to Outlet Length: 3.07 inches
• Media: Water
• Nominal Size: 1/2 inch
• Orifice Size: 1.22 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 73 degrees F
• Top to Inlet Center: 1.85 inches
• Trim Material: PTFE
