A Y MCDONALD MFG CO 4178-250 4835A 8X3/4 DI S SS STRP SDL 8.63-9.05xAWWA

Product Description

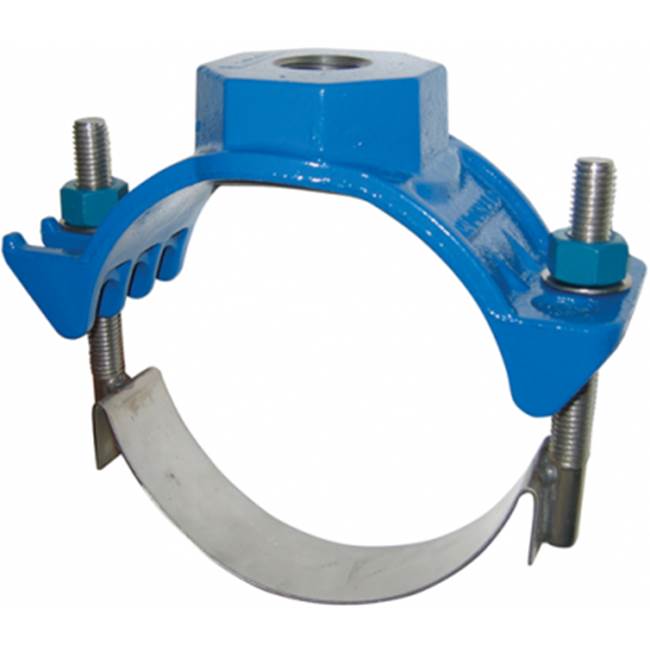

A Y McDonald MFG CO offers the 4178-250 Service Saddle for effective pipeline connections. This product features an AWWA taper thread and a ductile iron clamp designed for high-pressure applications. It supports a pressure rating of two hundred psig and is suitable for connecting eight to nine point five inches outside diameter C900 PVC pipe. The saddle includes an EPDM gasket for reliable sealing.

• 304L stainless steel straps and studs included
• PTFE coated nuts and washers
• Identifiable pipe tap size and thread type on saddle

Product Highlights

The service saddle is ideal for various plumbing applications. Its durable construction ensures longevity and reliability under pressure.

Product Information

Standard Information

• Manufacturer: A Y MCDONALD MFG CO
• UPC: 053565434780

Technical Specifications

• Clamp Material: Ductile Iron
• Color: Blue
• Connection Type: AWWA Taper Thread
• Dimensions: 4.2 inches W
• Finish: Fusion Epoxy Powder Coated
• Gasket Material: EPDM
• Hole Diameter: 8.63 to 9.05 inches OD
• Nominal Size: 8 x 3/4 inches
• Pressure Rating: 200 psig
