A Y McDonald MFG CO 4128-170 3801 4X1 1/2 Saddle 2 Bolt 4.50 X AWWA

Product Description

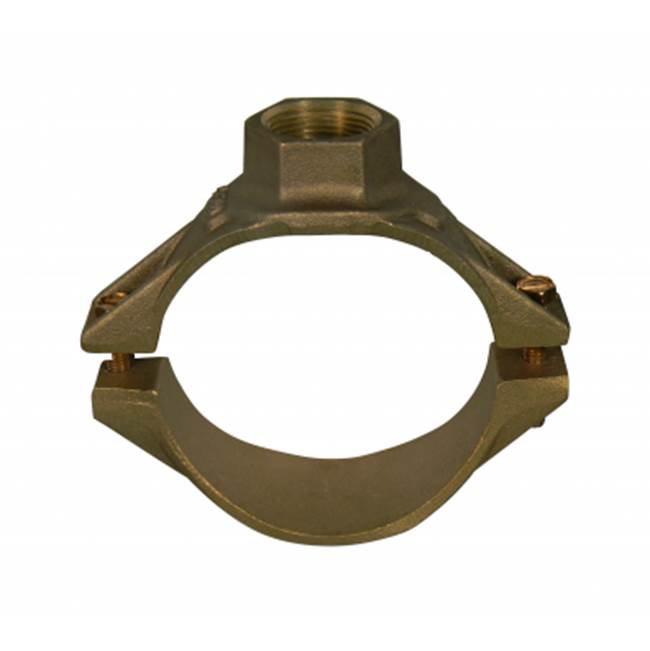

A.Y. McDonald MFG CO 4128-170 is a service saddle designed for plumbing applications. This saddle features a 2-piece hinged design with a nominal size of 4 inches by 1 and one-half inches. It uses AWWA taper thread and fits both SCH 40/STD and SCH 80/XH pipes, rated up to 200 psig.

• Silicon bronze bolts ensure robust connections.
• Cast brass clamp provides solid reliability.
• Includes EPDM gasket for effective sealing.

Product Highlights

This saddle is ideal for use in irrigation and water distribution systems. Its compatibility with various pipe schedules enhances versatility, and the built-in EPDM O-ring and gasket improve performance and reliability.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPCA: 053565034720

Technical Specifications

• Type: 2-Piece Hinged
• Dimensions: 3.46 inches Width
• Nominal Size: 4 x 1-1/2 inches
• Pressure Rating: 200 psig
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Connection Type: AWWA Taper Thread
• Bolt Material: Silicon Bronze
• Clamp Material: Cast Brass
• Gasket Material: EPDM
