A Y McDonald MFG CO 4128-118 3801 6X1 Saddle 2 Bolt 6.63 X AWWA

Product Description

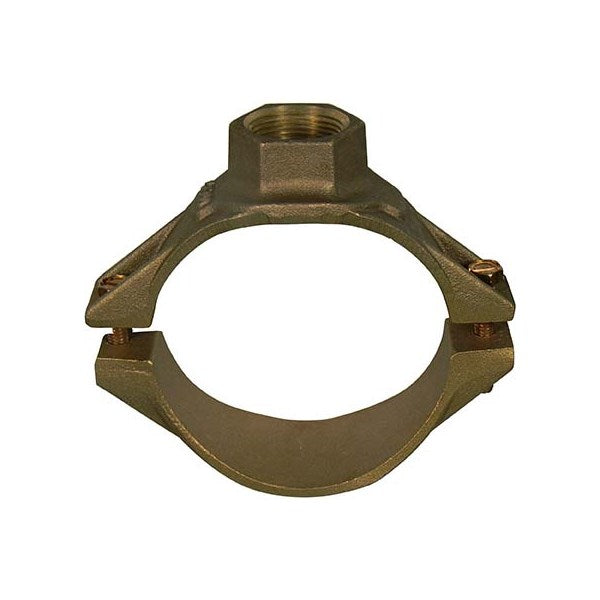

The A Y McDonald MFG CO 4128-118 is a 2-piece saddle designed for plumbing applications. This saddle measures six inches by one inch nominal size and features AWWA taper threads. It is compatible with Schedule 40/STD and Schedule 80/XH pipes, and operates at a pressure rating of 200 psig.

• Manufactured with a silicon bronze bolt and cast brass clamp.
• Includes an EPDM gasket for effective sealing and durability.
• Features an outlet boss with large wrench flats for easy installation.

Product Highlights

This saddle is ideal for use in water systems and offers reliable connections due to its robust construction.

Product Information

Standard Information

• Type: 2-Piece
• Manufacturer: A Y McDonald MFG CO

Technical Specifications

• Bolt Material: Silicon Bronze
• Bolt Size: 5/16-18 UNC-2A x 2 in L
• Clamp Material: Cast Brass
• Connection Type: AWWA Taper Thread
• Dimensions: 2.56 in W
• Domestic/Import: Domestic
• Gasket Material: EPDM
• Hole Diameter: 6.63 in OD
• Nominal Size: 6 x 1 in
• Pressure Rating: 200 psig
• Schedule Rating: SCH 40/STD or SCH 80/XH
