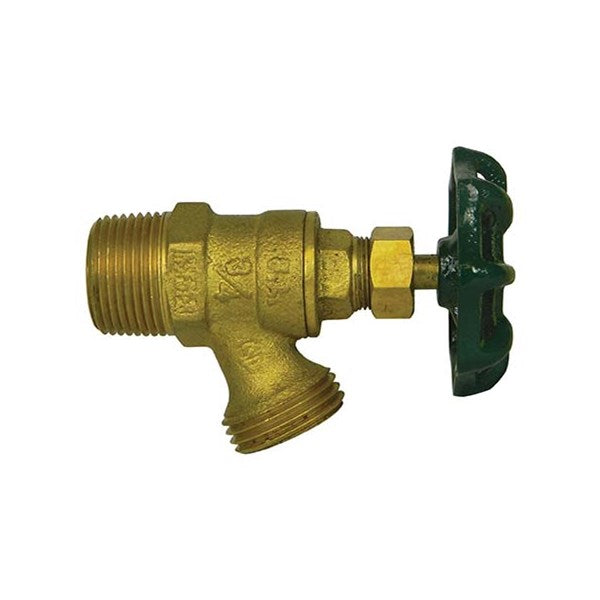

A Y Mcdonald Aym-72008 3/4 Boiler Drain Valve 125 Psi Brass

Product Description

The A Y MCDONALD aym-72008 3/4 is a no-lead brass boiler drain valve designed for low-pressure water service in residential and commercial plumbing systems. It features a 3/4-inch nominal size with a male NPT inlet and garden hose thread outlet, rated to 125 psi. The heavy-duty brass body and brass trim are paired with a rubber gland and seat packing for reliable positive shutoff. Licensed plumbers and HVAC technicians install this valve on boilers, water heaters, and related hydronic equipment where a serviceable drain point is required.

This boiler drain valve suits residential and light commercial applications involving hot and cold water systems. It is well-suited for installation on boiler drain ports, water heater drain connections, and similar low-pressure piping where a garden hose thread outlet is needed for draining or flushing the system. The MNPT x garden hose thread configuration allows direct attachment to standard drain hoses without adapters.

Key Features

• No-lead brass body and brass trim construction for potable water compliance
• 3/4-inch MNPT inlet connects directly to standard drain ports
• Garden hose thread outlet for easy hose attachment during draining or flushing
• Rated to 125 psi for reliable low-pressure service
• Rubber gland and seat packing provide positive shutoff
• Compact profile: 1.46 inches inlet to outlet length, 3.58 inches top to inlet center

Compatibility

Designed as an OEM-style replacement boiler drain valve for residential and commercial water systems requiring a 3/4-inch MNPT x garden hose thread drain connection at up to 125 psi.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before removing or installing any drain valve. Apply thread sealant or PTFE tape to the male NPT threads before installation. Do not overtighten; brass fittings are subject to cracking if excessive force is applied.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: MNPT x Garden Hose Thread
• Pressure Rating: 125 psi
• Media: Water
• Inlet to Outlet Length: 1.46 inches
• Top to Inlet Center: 3.58 inches
• Body Material: Brass
• Trim Material: Brass
• Softgoods Material: Rubber Gland, Seat Packing

Standard Information

• Brand: A Y MCDONALD
• Manufacturer Part Number: aym-72008 3/4
