A Y Mcdonald 76105 Minn Ball Curb Fnpt X Fnpt 3/4

Product Description

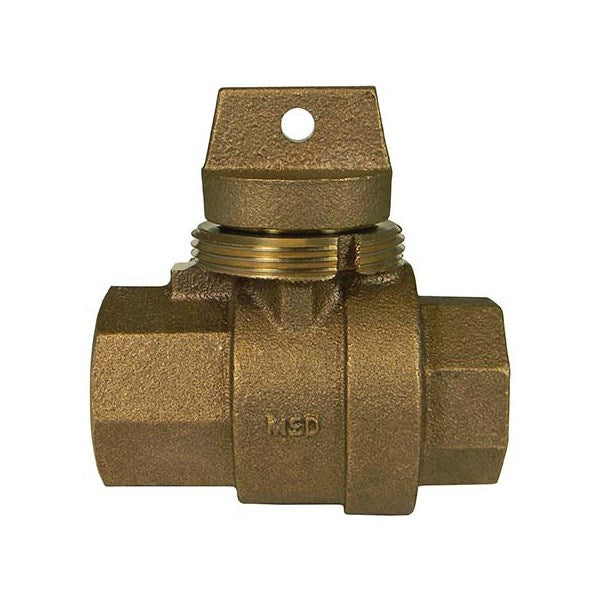

The A Y MCDONALD 76105 is a 3/4 inch Minn Ball Curb Stop with FNPT x FNPT connections. This curb stop is designed for waterworks applications. It features a ball plug and NL brass construction, suitable for straight connections.

• 3/4 inch FNPT inlet and outlet connections
• Ball plug design for reliable shutoff
• Constructed from NL brass

Product Highlights

Minn Ball Curb Stop with FNPT connections, NL brass construction, and 90-degree operating head rotation.

Product Information

Standard Information

• Brand: A Y MCDONALD
• Manufacturer Part Number: 76105

Technical Specifications

• Part Type: Curb Stop
• Series: 76105
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Ball Plug: Ball
• Lockwing: No
• Material: NL Brass
• Tracer Wire: No
• Operating Head Rotation: 90
• Valve Size: 3/4
• Product Line: Water Works
• Product Class: 441
• Commercial Category: Curb Stops
• Commercial Sub Category: Straight Minn BV-FNPTxFNPT
• Commercial Style: FNPTxFNPT
