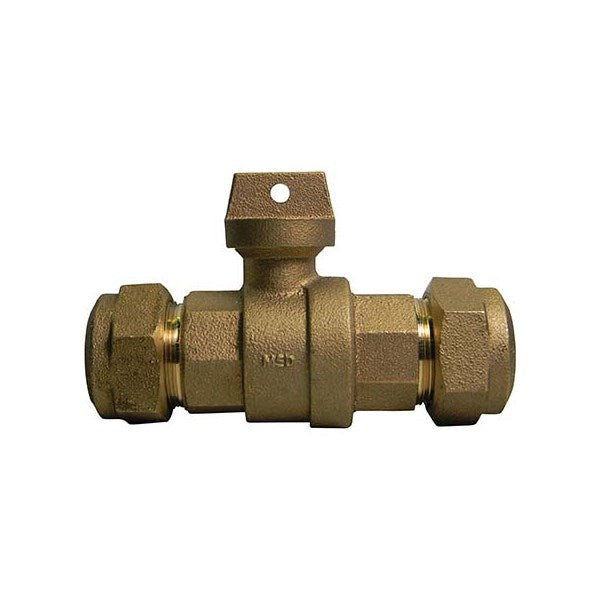

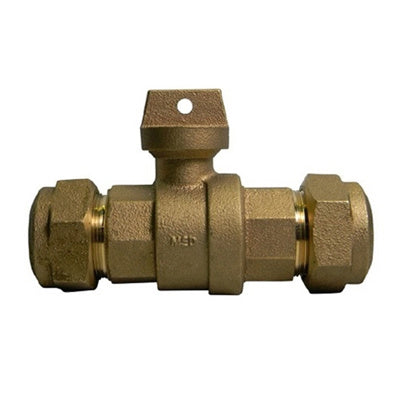

A Y Mcdonald 76100Q Lead-Free Ball Style Curb Stop Valve 1 in.

Product Description

The A Y MCDONALD 76100Q is a lead-free ball style curb stop valve with a regular pattern. It is rated for 300 psig water max and features inlet/outlet connections for CTS (copper tube size) pipe. This valve is NSF 61 approved and constructed from lead-free brass.

• Lead-free brass construction

• Rated 300 psig water max

• Regular pattern curb stop ball valve

Product Highlights

This curb stop valve is ideal for potable water applications, providing a reliable shutoff with its ball valve design and lead-free construction.

Product Information

Standard Information

• Brand: A Y MCDONALD

• Manufacturer Part Number: 76100Q

Technical Specifications

• MFR #: 76100Q

• Part Type: Curb Stop

• Series: 76100Q

• Inlet Connection: CTS Q-Series Comp (W/Stop)

• Outlet Connection: CTS Q-Series Comp (W/Stop)

• Insert Stiff Req: Must be used on flexible plastic connections

• Ball Plug: Ball

• Handle Type: N/A

• Lockwing: No

• Material: NL Brass

• Repair Part: No

• Operating Head Rotation: 90

• Product Line: Water Works

• Product Class: 441

• Commercial Category: Curb Stops

• Commercial Sub Category: Straight BV-COMPxCOMP

• Commercial Style: CTSxCTS

• Selling Size: 1 inch
