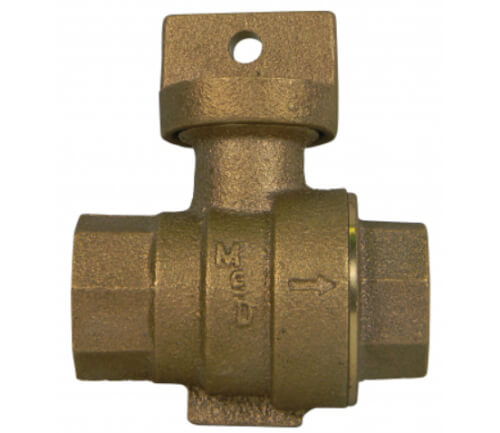

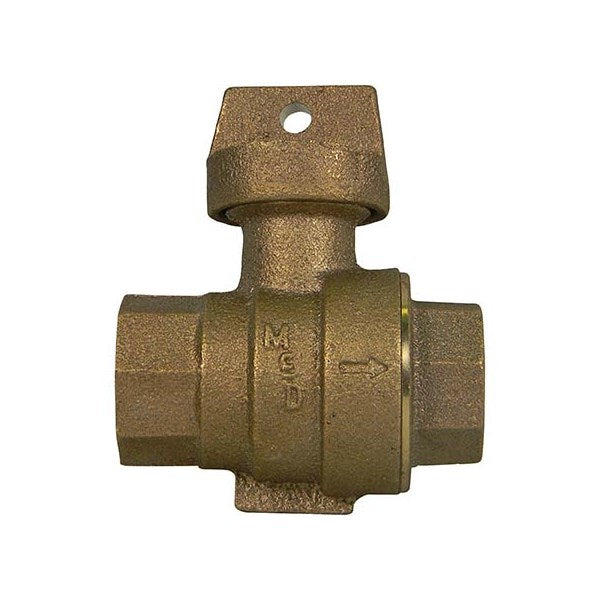

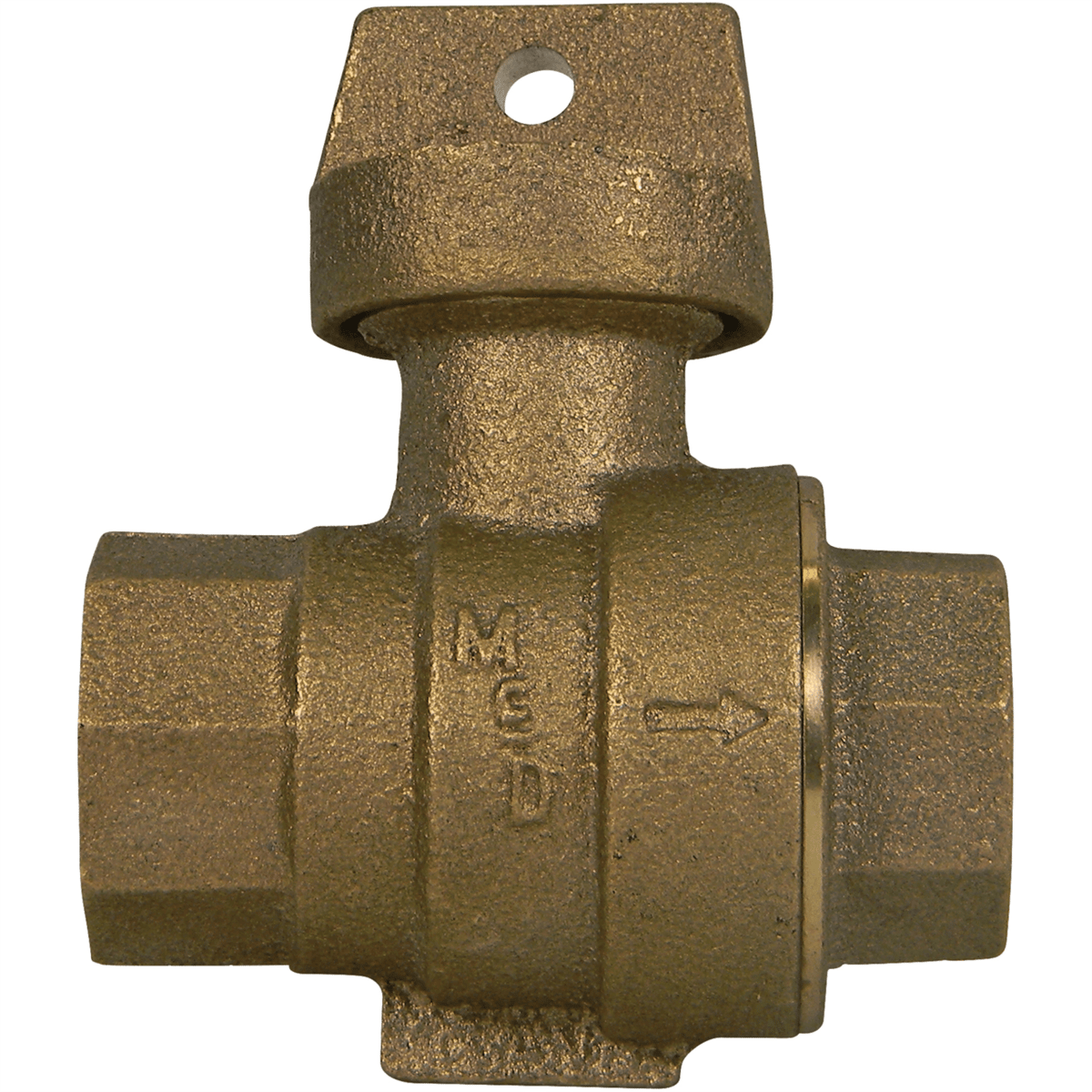

A Y MCDONALD 76001 Stop and Drain Ball Curb Valve

Product Description

The A Y MCDONALD 76001 is a reliable stop and drain ball curb valve tailored for waterworks applications. The valve incorporates a PTFE coated brass ball and EPDM seals, ensuring a low turning torque and a secure, leak-proof seal at a water pressure of one hundred fifty PSIG. It is designed to drain automatically from the outlet side when closed, facilitating efficient operation.

• FNPT x FNPT connection type.
• 90-degree operating head rotation.
• Constructed with no-lead brass.

Product Highlights

This valve is essential for applications requiring reliable shut-off and drainage solutions. Its directional design and durable construction make it ideal for long-term use.

Product Information

Standard Information

• MPN: 76001
• Brand: A Y MCDONALD

Technical Specifications

• Part Type: Stop & Drain
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 1.5 inches
• Outlet Connection Size: 1.5 inches
• Ball Plug: Ball
• Body Material: Lead-Free Brass
• Seal Material: EPDM
• Pressure Rating: 150 psi
• Standards Met: NSF 61, AWWA C800, NSF 372
