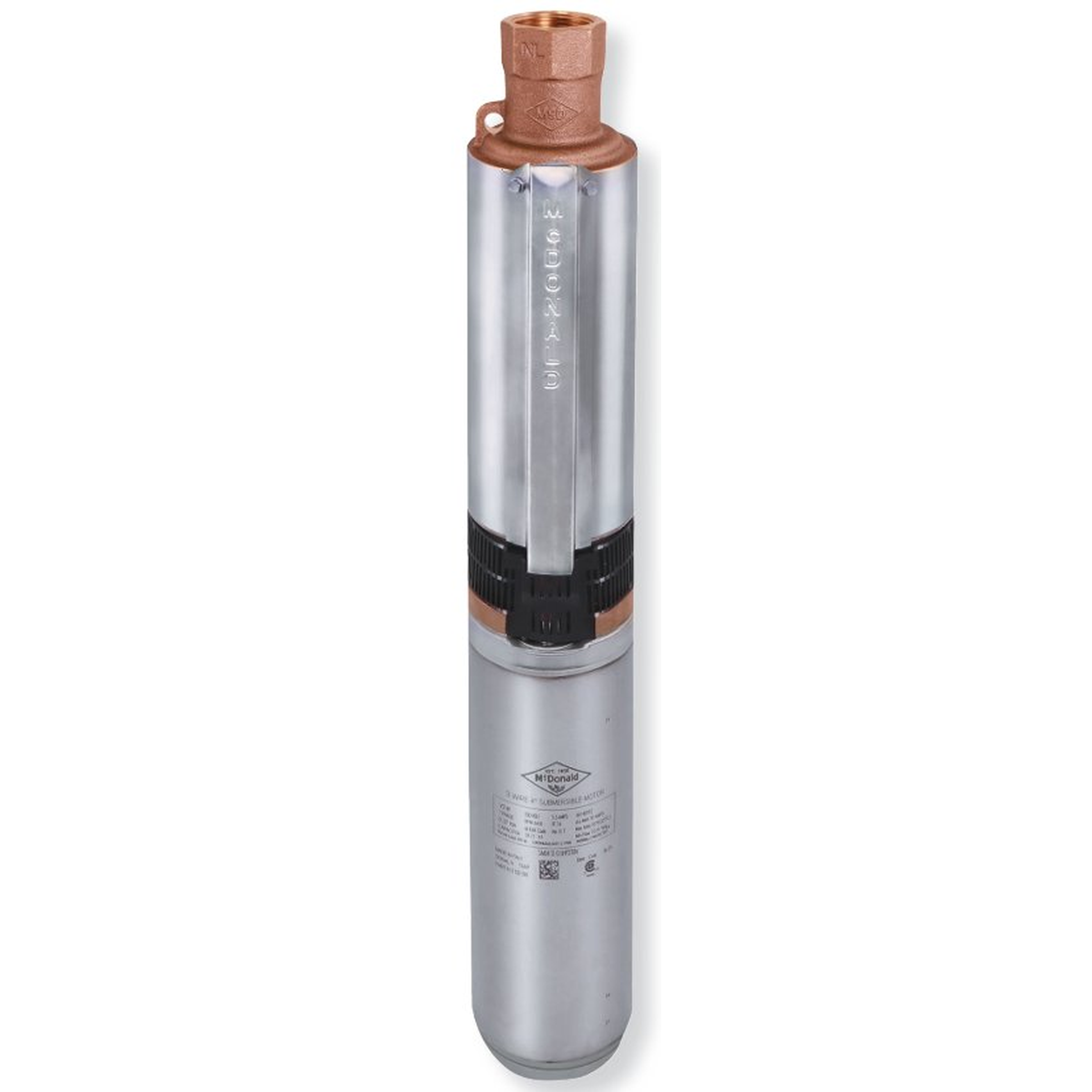

A.Y. McDonald 6633-014 Model 21075V2 3/4 HP (4 in Submersible Well Pump)

Product Description

A.Y. McDonald 6633-014 (Model 21075V2) is a 3/4 HP, 230 V single-phase two-wire 4 in submersible well pump delivered as a complete pump package including pump, motor and leads. The pump uses a no-lead brass discharge with an internal check valve, stainless steel casing and shaft, and glass bead acetal impellers and diffusers. Best efficiency flow is 7 GPM with a 1-1/4 in FNPT discharge for deep well water systems.

• Construction: no-lead brass discharge casting, stainless steel pump casing and shaft, glass bead acetal impellers and diffusers.
• Electrical/performance: 3/4 HP, 230 V, single-phase, two-wire motor; 12 stages; best efficiency at 7 GPM.
• Package and connections: includes pump, motor, 48 in grounded leads and internal check valve; minimum well diameter 4 in; 1-1/4 in FNPT discharge.

Product Highlights

3/4 HP 230 V single-phase submersible pump, 12-stage design, 7 GPM best efficiency, 1-1/4 in FNPT discharge, internal check valve.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 6633-014
• Country of Origin: United States
