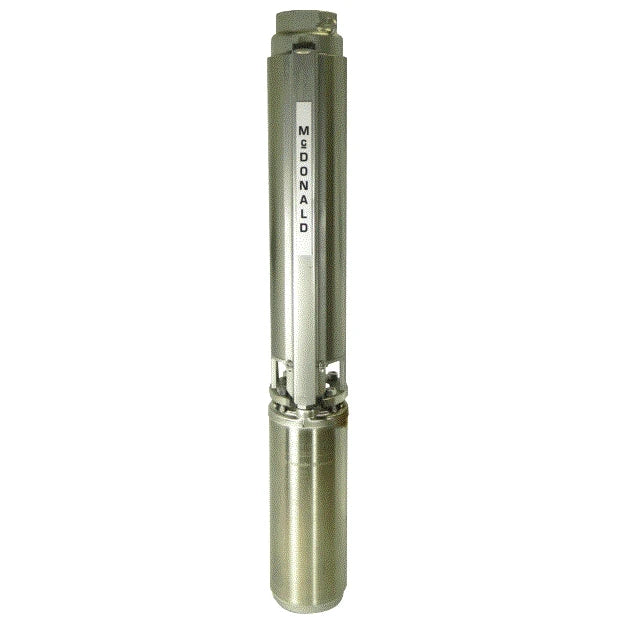

A.Y. McDonald 6630-403 24500M3 4 inches Submersible Well Pump 5 HP (4 inch)

Product Description

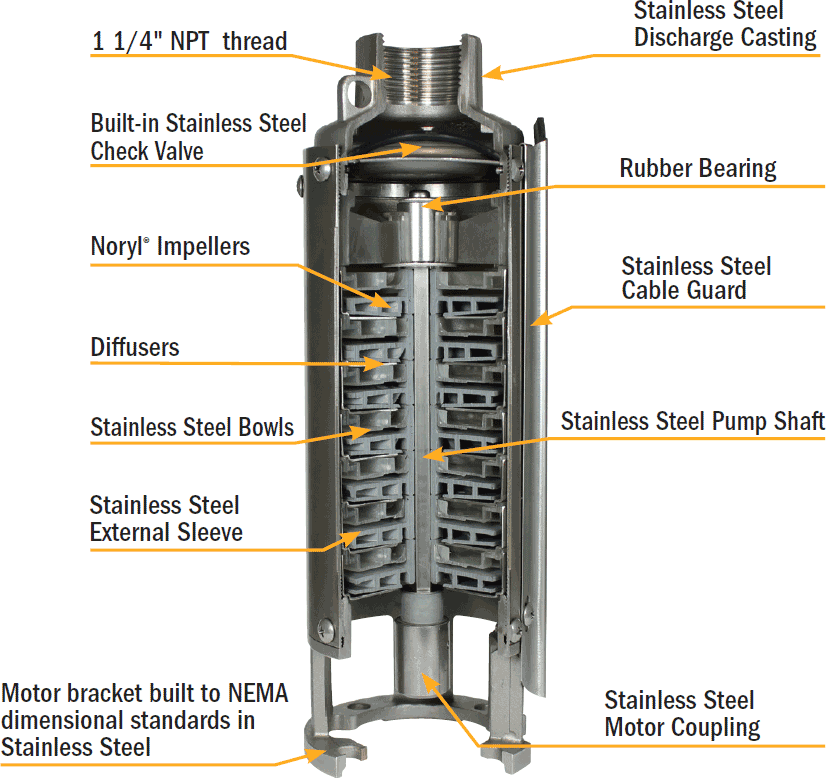

A.Y. McDonald 6630-403 24500M3 is a 4-inch stainless steel submersible well pump designed for water systems and optimized for approximately 25 GPM. The unit incorporates a 5 HP, 232 Volt, three-wire single-phase motor with 26 stages, a 1-1/4 in. NPT discharge, and NEMA-approved stainless steel construction. The assembly includes a control box, check valve, grounded 100 in. leads, Noryl impellers, and built-in lightning protection for the motor.

• 5 HP, 232 Volt, three-wire single-phase motor with NEMA-approved stainless steel construction and built-in lightning protection
• Designed for best efficiency at 25 GPM with 26 pumping stages and 1-1/4 in. NPT discharge

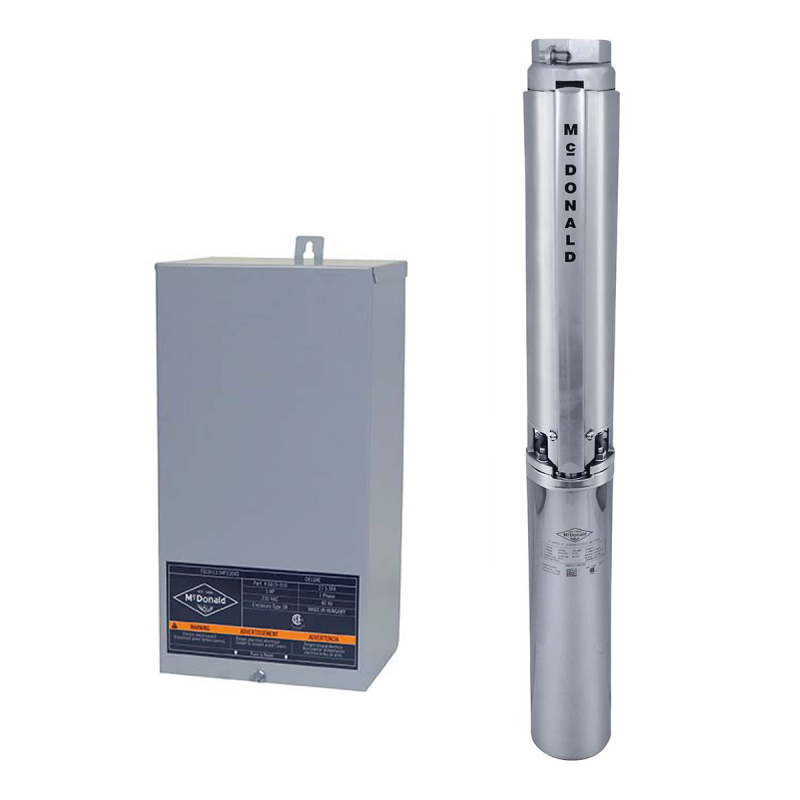

• Includes control box, motor, check valve, and 100 in. grounded leads meeting NEC specifications

Product Highlights

4-inch stainless steel submersible well pump model 24500M3, 5 HP, optimized for ~25 GPM, includes control box and check valve.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 6630-403
• Country of Origin: USA

Technical Specifications

• Brand: A.Y. McDonald
• MPN: 6630-403
• Model Number: 24500M3
• Series: 24000 M
• Product Type: Submersible well pump
• Application: Water systems
• Horsepower: 5 HP
• Input Voltage: 232 Volts (nominal 230 V)
• Phase: Single phase
• Wiring: 3-wire
• Stages: 26
• Pump Diameter: 4"
• Minimum Well Size: 4"
• Discharge Connection: 1-1/4" NPT
• Best Efficiency Flow: 25 GPM
• Performance - Flow at 50 ft: 36.4 GPM
• Performance - Flow at 100 ft: 35.1 GPM
• Performance - Flow at 150 ft: 33.9 GPM
• Performance - Flow at 200 ft: 32.5 GPM
• Performance - Flow at 250 ft: 31.1 GPM
• Performance - Flow at 300 ft: 29.6 GPM
• Performance - Flow at 350 ft: 28.0 GPM
• Performance - Flow at 400 ft: 26.2 GPM
• Performance - Flow at 450 ft: 24.2 GPM
• Performance - Flow at 500 ft: 21.9 GPM
• Performance - Flow at 550 ft: 19.1 GPM
• Performance - Flow at 600 ft: 15.4 GPM
• Performance - Flow at 650 ft: 9.5 GPM
• Pump Casing: Stainless steel
• Impeller Material: Noryl
• Check Valve: Included
• Control Box: Included
• Motor: Included (NEMA-approved stainless steel motor with built-in lightning protection)
• Lead Length: 100 in.
• Includes: Motor, control box, check valve, grounded leads
