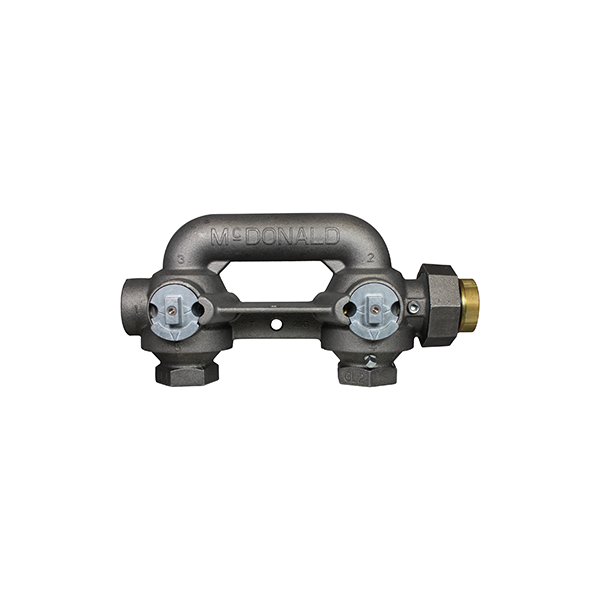

A Y McDonald 6480-CCDM-V 6480-Ccd 1 1/2X1 1/2X1 1/2 Bypass Meterbar

Product Description

The A Y McDonald 6480-CCDM-V is a bypass meter bar designed for natural gas applications. It features a black coating and is suitable for industrial settings. This meter bar has a pressure rating of twenty-five psi.

• Inlet and outlet connections are one and one-half FNPT.
• Includes two integral, three-port valves.
• Tap location is Position C (Outlet Front) with a quarter inch NPT recessed hex head plug.

Product Highlights

This bypass meter bar is built for reliability in natural gas applications, offering a solid construction with built-in valves for efficient operation.

Product Information

Standard Information

• Part Type: Bypass Meter Bar
• Series: 6480-CCD

Technical Specifications

• Inlet Connection: FNPT
• Outlet Connection: FNPT Insulated O-Ring Union
• Inlet Connection Size: 1 1/2 inches
• Outlet Connection Size: 1 1/2 inches
• Coating: Black
• Meter Bar Spread: 8 1/4 inches
• Meter Bar Type: Bypass Meter Bar with two integral, three-port valves
• Tap Location: Position C (Outlet Front)
• Tap Plug Size: 1/4 inch NPT recessed hex head plug
• Meter Swivel / Tap Size: 1 1/2 inches
• Pressure Rating: 25 psi
• Product Line: Natural Gas
