A Y Mcdonald 6410-FFE-W 6410-FFE 1X1X1 BLK HxH INS PV Bypass Meterbar 6 C-C 5#

Product Description

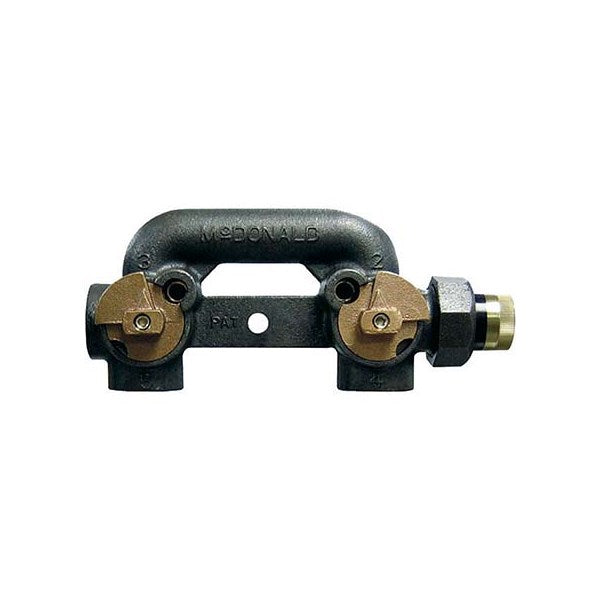

The A Y McDonald 6410-FFE-W is a bypass meter bar designed for natural gas applications. This product has a 1 inch by 1 inch by 1 inch black insulated flat gasket union with a six inch spread. It is well-suited for residential installations with a horizontal inlet and outlet configuration. The meter bar features two integral three-port valves to ensure proper function.

• Part Type: Bypass Meter Bar
• Inlet/Outlet Connection: 1 inch FNPT / 1 inch FNPT Insulated Flat Gasket Union
• Pressure Rating: 5 psi

Product Highlights

This meter bar is ideal for connecting gas lines in residential settings. Its robust design and integrated valves facilitate efficient gas flow and pressure management.

Product Information

Standard Information

• Part Type: Bypass Meter Bar
• Series: 6410-FFE

Technical Specifications

• Inlet Connection: FNPT
• Outlet Connection: FNPT Insulated Flat Gasket Union
• Inlet Connection Size: 1 inch
• Outlet Connection Size: 1 inch
• Coating: Black
• Meter Bar Spread: 6 inches (No Meter Swivels)
• Meter Bar Type: Bypass Meter Bar With Two Integral, 3-Port Valves (Relube – Unless Specified Differently)
• Tap Plug Size: 1/4 inch NPT Square Head Plug
• Meter Swivel / Tap Size: 1 inch
• Pressure Rating: 5 psi
• Product Line: Natural Gas
