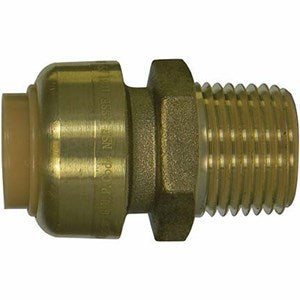

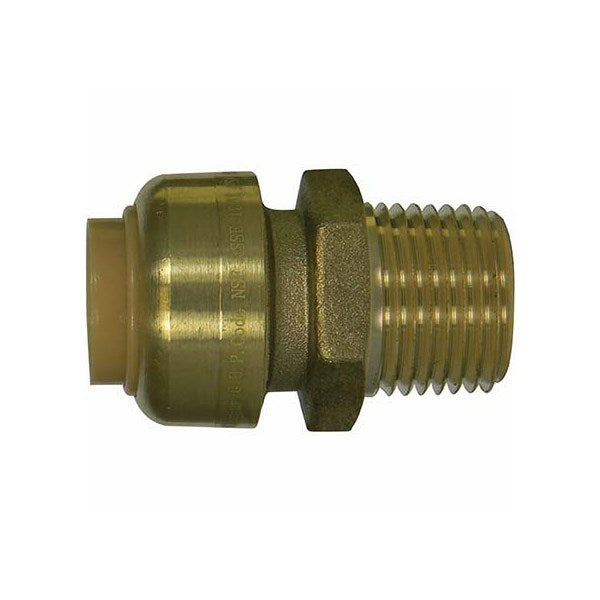

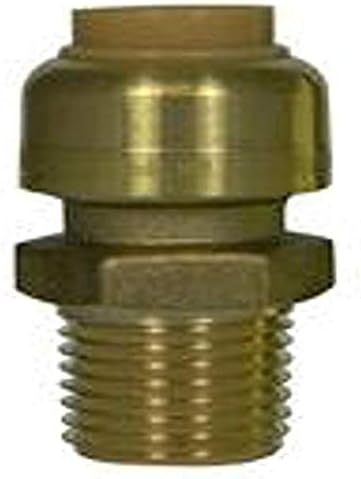

A.Y. Mcdonald 5426-020 72100m Adapter 3/4 Inch

Product Description

The A.Y. MCDONALD 5426-020 72100m adapter is designed for use on copper tubing, PEX tubing, and CPVC pipe. These push-fit fittings eliminate the need for soldering, crimping, or solvent welding and are designed for above-ground indoor water applications. These fittings are pressure rated at 200 psig over a temperature range from 0F to 200F.

• No-Lead Push-Fit Valves & Fittings
• Push-Fit Fittings are pressure rated at 200 psig (13.8 bar) over a temperature range from 0F to 200F
• Typical applications: Above ground plumbing, water systems and hydronic heating systems

Product Highlights

The A.Y. McDonald 5426-020 adapter is ideal for above-ground plumbing, water systems, and hydronic heating systems.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5426-020

Technical Specifications

• Part Type: Adapter
• Series: 72100M
• Inlet Connection: Push Fit
• Outlet Connection: MNPT
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Material: NL Brass
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Fittings
• Commercial Sub Category: Push NL Brass
• Commercial Style: Adapters CTS x MNPT
• Brand: AY McDonald
• Manufacturer: AY McDonald
• Model Number: 5426-020
• Part Number: 5426-020
