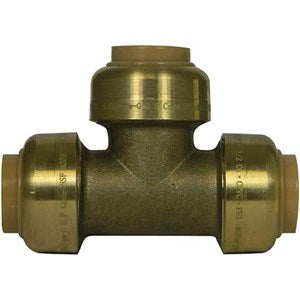

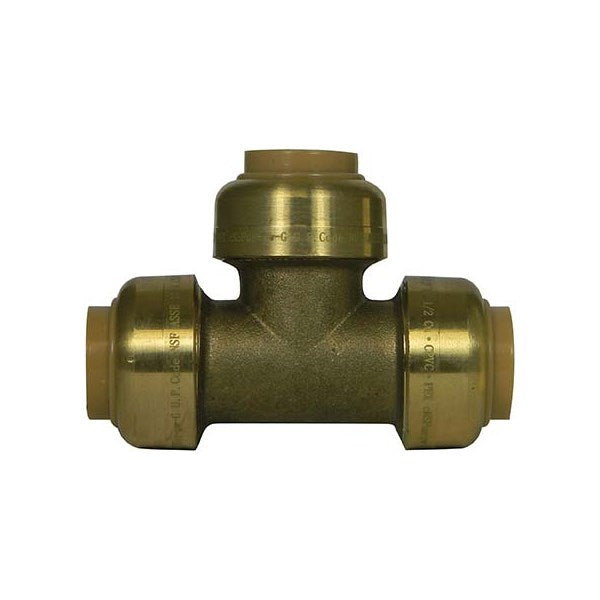

A.Y. Mcdonald 5426-014 72130 1 Tee Push Fit NL

Product Description

The A.Y. MCDONALD 5426-014 is a 72130 1 Tee designed for use on copper, PEX, and CPVC tubing. These no-lead push-fit fittings eliminate soldering, crimping, and solvent welding, designed for above-ground indoor water applications. They comply with all applicable standards and are pressure rated at 200 PSIG from 0° to 200°F.

• Designed for use on copper tubing, PEX tubing, and CPVC pipe
• Eliminates the need for soldering, crimping, or solvent welding
• Designed for above ground indoor water applications

Product Highlights

Ideal for plumbing, water, and hydronic heating systems, these fittings offer a quick disconnect clip for easy disassembly and a solution to typical installation errors.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5426-014

Technical Specifications

• Part Type: Tee
• Series: 72130
• Inlet Connection: Push Fit
• Outlet Connection: Push Fit
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Material: NL Brass
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Fittings
• Commercial Sub Category: Push NL Brass
• Commercial Style: Tees CTS x CTS
• Model #: 5426-014
• Description: 1 in.
• Typical applications: Above ground plumbing, water systems and hydronic heating systems
• Use with: Pex tubing in accordance with ASTM F-876 and F-877 Copper tubing in accordance with ASTM B88 CPVC tubing in accordance with ASTM D2846/2846M-99
• Body Material: Forged no-lead brass
• O-Ring Material: EPDM Rubber
• Gripper Ring Material: 316 Stainless Steel
• Stiffener Material: Polysulfone
• Plastic Parts Material: Acetal (POM)
• Conformance: Manufactured in Accordance to ANSI/ASSE 1061 CSA B137.5 Listed, Adapter threads to ANSI B1.20.1 Adapter solder ends to ANSI B16.18
• Pressure and Temperature: Push-Fit Fittings are pressure rated at 200 psig (13.8 bar) over a temperature range from 0 F to 200 F (-18 C to 93 C)
• Brand: AY McDonald
• Manufacturer: 72130 1 Tee CTS No Lead
• UPC: 535656680936
• Model Number: 5426-014
• Manufacturer Part Number: 5426-014
