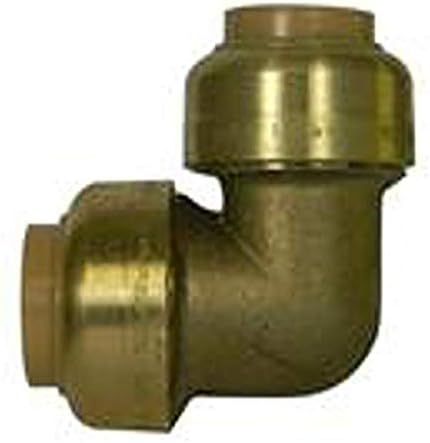

A.Y. Mcdonald 5426-005 72190 1/2 Elbow 90 Deg Push Fit NL

Product Description

The A.Y. MCDONALD 5426-005 72190 is a 1/2 Elbow 90 Degree Push Fit NL. Designed for use on copper tubing, PEX tubing, and CPVC pipe. Push-Fit fittings eliminate the need for soldering, crimping, or solvent welding and are designed for above ground indoor water applications.

• Designed for use on copper tubing, pex tubing, and CPVC pipe
• Eliminate the need for soldering, crimping, or solvent welding
• Designed for above ground indoor water applications

Product Highlights

Ideal for plumbing, water, and hydronic heating systems. The sleek disconnect clip allows for quick disassembly.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5426-005
• Country of Origin: United States

Technical Specifications

• Part Type: Elbow
• Series: 72190
• Inlet Connection: Push Fit
• Outlet Connection: Push Fit
• Inlet Connection Size: 1/2
• Outlet Connection Size: 1/2
• Material: NL Brass
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Fittings
• Commercial Sub Category: Push NL Brass
• Commercial Style: Elbow CTS x CTS
• Brand: AY McDonald
• MPN: 5426-005
• UPC: 053565667966
• Condition: New
• Country of Origin: United States
• Typical applications: Above ground plumbing, water systems and hydronic heating systems
• Use with: Pex tubing in accordance with ASTM F-876 and F-877 Copper tubing in accordance with ASTM B88 CPVC tubing in accordance with ASTM D2846/2846M-99
• Material Body: Forged no-lead brass
• Material O-Ring: EPDM Rubber
• Material Gripper Ring: 316 Stainless Steel
• Material Stiffener: Polysulfone
• Material Plastic Parts: Acetal (POM)
• Conformance: Manufactured in Accordance to ANSI/ASSE 1061 CSA B137.5 Listed, Adapter threads to ANSI B1.20.1 Adapter solder ends to ANSI B16.18
• Pressure and Temperature: Push-Fit Fittings are pressure rated at 200 psig (13.8 bar) over a temperature range from 0 0 baF to 200 0 baF (-18 0 baC to 93 0 baC)
• Connector type: Elbow
• Number of pieces: 1
• Width: 0.70 (in)
• Height: 2.00 (in)
• Depth: 0.70 (in)
