A.Y. Mcdonald 5426-000 72100 1/2 Coupling Brass Push Fit NL

Product Description

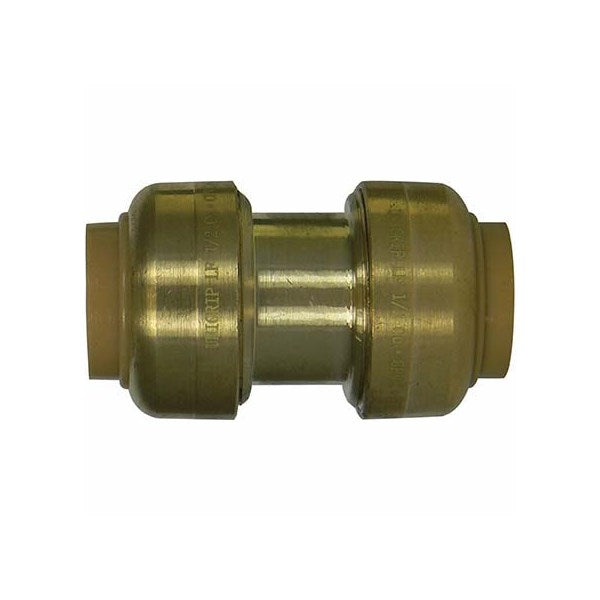

The A.Y. MCDONALD 5426-000 72100 1/2 Coupling is a brass push fit coupling. Designed for use on copper tubing, PEX tubing, and CPVC pipe. Push-fit fittings eliminate the need for soldering, crimping, or solvent welding and are designed for above ground indoor water applications.

• No-Lead Push Fit Fittings
• Permanent connection is established in seconds
• Pressure rated at 200 PSIG from 0 to 200°F

Product Highlights

This coupling is ideal for plumbing, water, and hydronic heating systems. Sleek disconnect clip allows for quick disassembly.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5426-000

Technical Specifications

• Part Type: Coupling
• Series: 72100
• Inlet Connection: Push Fit
• Outlet Connection: Push Fit
• Inlet Connection Size: 1/2
• Outlet Connection Size: 1/2
• Material: NL Brass
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Fittings
• Commercial Sub Category: Push NL Brass
• Commercial Style: Couplings CTS x CTS
• Typical applications: Above ground plumbing, water systems and hydronic heating systems
• Use with: Pex tubing in accordance with ASTM F-876 and F-877 Copper tubing in accordance with ASTM B88 CPVC tubing in accordance with ASTM D2846/2846M-99
• Material Body: Forged no-lead brass
• Material O-Ring: EPDM Rubber
• Material Gripper Ring: 316 Stainless Steel
• Material Stiffener: Polysulfone
• Material Plastic Parts: Acetal (POM)
• Conformance: Manufactured in Accordance to ANSI/ASSE 1061 CSA B137.5 Listed, Adapter threads to ANSI B1.20.1 Adapter solder ends to ANSI B16.18
• Pressure and Temperature: Push-Fit Fittings are pressure rated at 200 psig (13.8 bar) over a temperature range from 0 0F to 200 0F (-18 0C to 93 0C)
