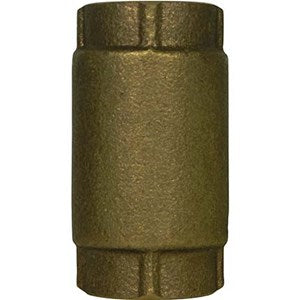

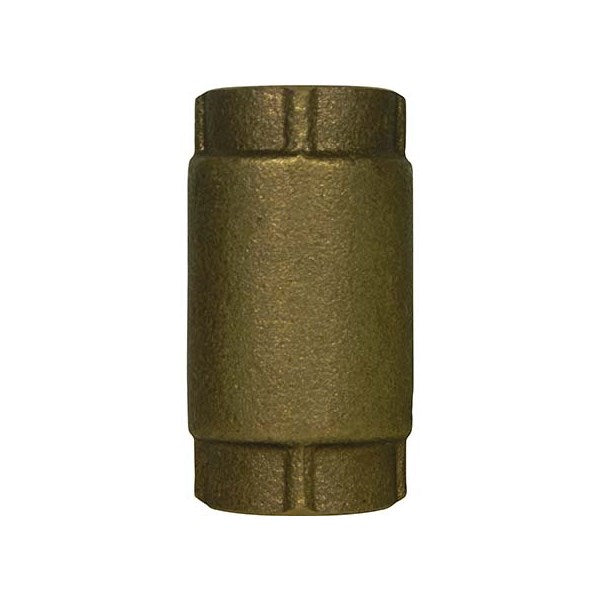

A.Y. Mcdonald 5421-360 72057T Low Pressure Valve Directional In-Line Check Valve 1 in

Product Description

The A.Y. MCDONALD 5421-360 is a 72057T low-pressure valve directional in-line check valve. Constructed from heavy-duty no-lead brass, it's suitable for residential and commercial applications, providing positive shut-off. It has a 1-inch FNPT connection, a flow rate of 25.1 gpm, and is designed for water media. Spring loaded check and directional.

• No-Lead Low Pressure Valves are constructed from heavy duty no-lead brass
• Recommended for residential and commercial applications
• Spring loaded check

Product Highlights

This bronze body valve is designed for low-pressure applications, ensuring reliable directional control and shut-off.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5421-360

Technical Specifications

• Part Type: Check Valve
• Series: 72057T
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Check Valves-NL Bronze Spring
• Commercial Style: FNPT x FNPT
• Brand: A.Y. McDonald
• Body Material: Bronze
• End Style: FNPT
• Flow Rate: 25.1 gpm
• Inlet to Outlet Length: 3.23 in
• Low Lead Compliance: true
• Media: Water
• Nominal Size: 1 in
• Pressure Class: 200 lb WOG
• Softgoods Material: Rubber O-Ring
• Temperature Rating: 180 deg F
• Trim Material: Bronze Stem
• Type: Low Pressure Valve Directional
• Model #: 5421-360
• Description: 1 in.
• NSF / ANSI: 372
