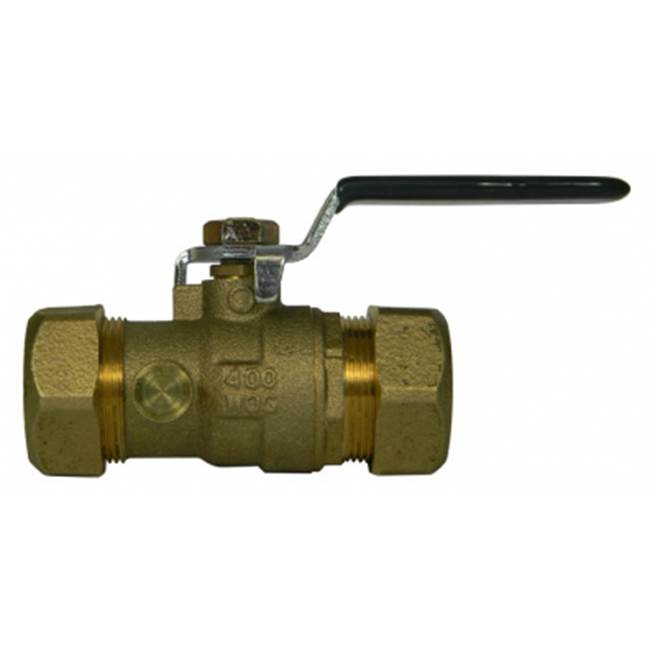

A Y McDonald 5421-144 72030C 3/4 Ball Valve W/DRAIN COMP-NL

Product Description

A Y McDonald presents the 5421-144 72030C three-quarter inch ball valve with drain compression. This valve operates effectively at a pressure rating of four hundred psi WOG and features a standard port design. Its inlet to outlet length measures two point ninety-nine inches, and the distance from the top to the inlet center is one point fifty-seven inches. The component is constructed from brass with a brass stem trim and PTFE/rubber soft goods.

• Blow-out proof stem design
• Lead content is less than zero point twenty-five percent
• Includes PTFE and rubber drain packing

Product Highlights

This ball valve is suitable for commercial, industrial, and residential applications. It complies with NSF/ANSI 61-8/372 standards.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565562872

Technical Specifications

• Body Material: Brass
• End Style: Compression
• Inlet to Outlet Length: 2.99 in
• Nominal Size: 3/4 in
• Port Type: Standard
• Pressure Rating: 400 psi WOG
• Series: 72030C
• Softgoods Material: PTFE/Rubber
• Top to Inlet Center: 1.57 in
• Trim Material: Brass Stem
