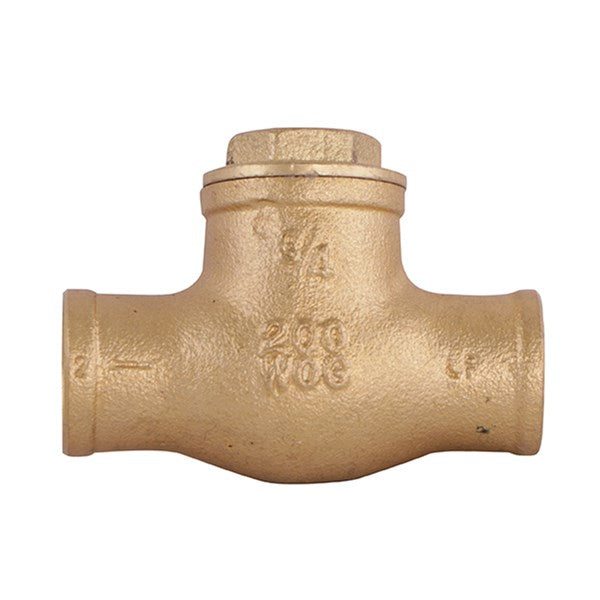

A.Y. Mcdonald 5421-109 Swing Check Valve 2 in

Product Description

The A.Y. MCDONALD 5421-109 is a 2-inch swing check valve. It features a metal-to-metal seat and is directional. Suitable for commercial and residential applications with solder ends conforming to ANSI B16.18. This no-lead valve complies with NSF/ANSI 372 & NSF/ANSI 61 standards.

• SWT x SWT connection
• 200 WOG
• Solder Ends Conform to ANSI B16.18

Product Highlights

This swing check valve is directional and features a metal to metal seat. Suitable for plumbing applications.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5421-109

Technical Specifications

• Part Type: Swing Check
• Series: 72050S
• Inlet Connection: Sweat
• Outlet Connection: Sweat
• Inlet Connection Size: 2
• Outlet Connection Size: 2
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Check Valves - NL Brass Swing
• Commercial Style: SWT x SWT
• Model #: 5421-109
• Description: 2 in.
• Body Material: Brass
• End Style: C
• Inlet to Outlet Length: 5.47 in
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 2 in
• Softgoods Material: Fiber-H
• Top to Inlet Center: 2.68 in
• Trim Material: Brass
• Type: Directional
• Manufacturer: A.Y. McDonald
• Brand: A.Y. McDonald
• Size: 2 in.
