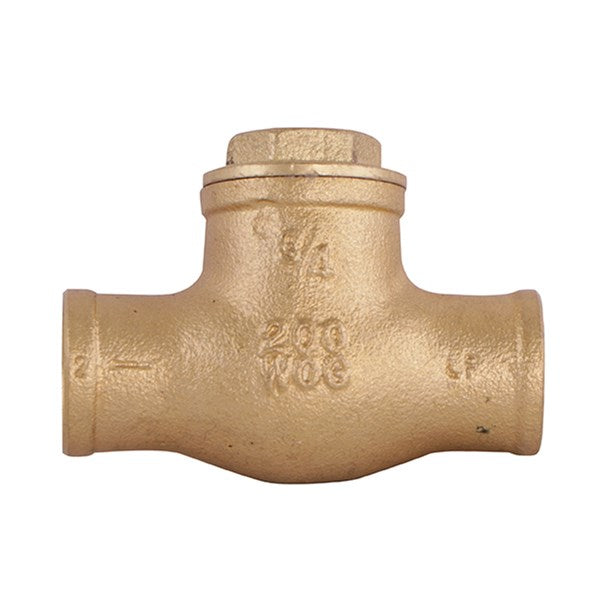

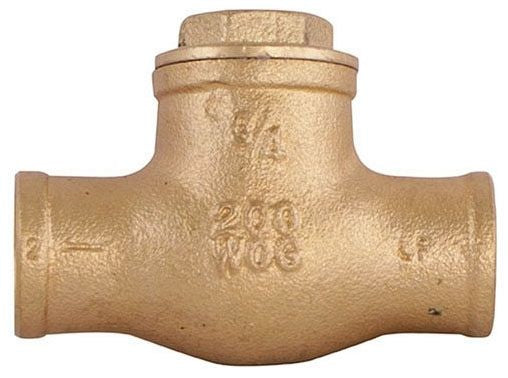

A.Y. Mcdonald 5421-104 72050S Swing Check Valve 1/2

Product Description

The A.Y. MCDONALD 5421-104 swing check valve is directional with a 1/2 in nominal size. Designed for water media, it features a brass body and trim with Fiber-H softgoods. This valve has a 2.4 in inlet to outlet length and a 1.4 in top to inlet center.

• 15 psi working back pressure
• Metal to metal seat
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead

Product Highlights

Ideal for plumbing applications, this lead-free swing check valve ensures water flows in one direction. Suitable for commercial and residential use.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5421-104

Technical Specifications

• Part Type: Swing Check
• Series: 72050S
• Inlet Connection: Sweat
• Outlet Connection: Sweat
• Inlet Connection Size: 1/2
• Outlet Connection Size: 1/2
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Check Valves - NL Brass Swing
• Commercial Style: SWT x SWT
• Body Material: Brass
• End Style: C
• Inlet to Outlet Length: 2.4 in
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 1/2 in
• Softgoods Material: Fiber-H
• Top to Inlet Center: 1.4 in
• Trim Material: Brass
• Type: Directional
• Manufacturer: A.Y. McDonald
• Connection: Sweat
• Lead Free: Lead Free
• Pressure Class: 125
• Size: 1/2 in
• Manufacturer Name: A. Y. McDonald Mfg. Co.
