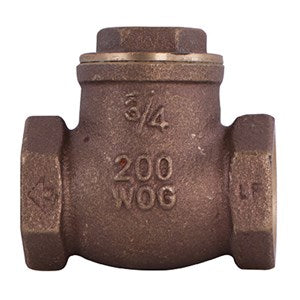

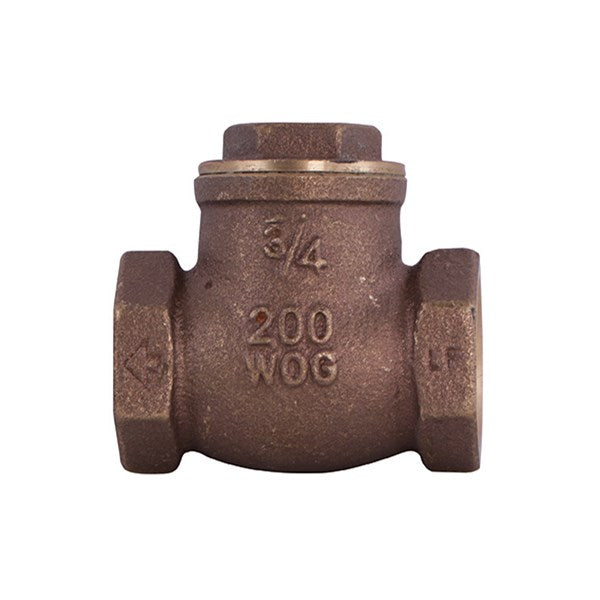

A.Y. Mcdonald 5421-100 72050t Swing Check Valve-fnpt NL

Product Description

The A.Y. MCDONALD 5421-100 swing check valve is directional with a 1 in nominal size and FNPT end style. Designed for water applications, it features a brass body and trim, along with Fiber-H softgoods. This valve ensures low lead compliance and reliable performance in plumbing systems.

• 15 psi working back pressure
• Metal to metal seat
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead

Product Highlights

Ensures directional flow control with durable brass construction and low lead compliance for plumbing applications.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5421-100

Technical Specifications

• Part Type: Swing Check
• Series: 72050T
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Check Valves - NL Brass Swing
• Commercial Style: FNPT x FNPT
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.62 in
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 1 in
• Softgoods Material: Fiber-H
• Top to Inlet Center: 1.77 in
• Trim Material: Brass
• Type: Directional
• Manufacturer: A.Y. McDonald
