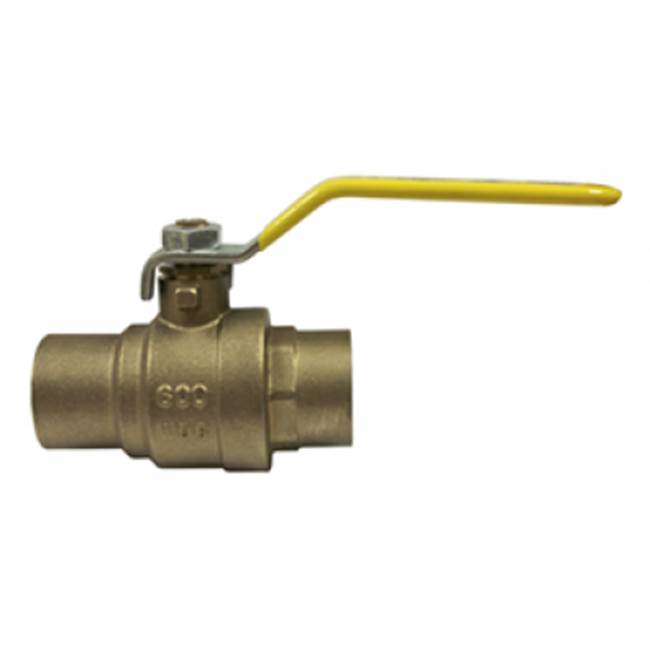

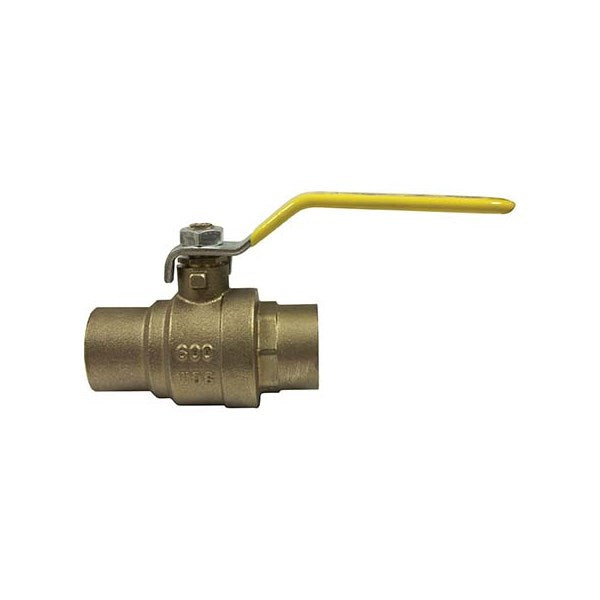

A.Y. Mcdonald 5420-476 72117S Full Port Ball Valve 1 1/4

Product Description

The A.Y. MCDONALD 5420-476 is a 72117S full port ball valve. This no-lead valve is manufactured to MSS-SP-110 and has solder ends that conform to ANSI B16.18. It features a blowoff proof stem and is NSF / ANSI 61-4 certified. It is suitable for commercial, industrial, and residential applications.

• Manufactured to MSS-SP-110
• Solder Ends Conform to ANSI B16.18
• Blowoff proof stem

Product Highlights

Full port ball valve with no-lead construction, ideal for various plumbing applications.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-476

Technical Specifications

• Part Type: Ball Valve
• Series: 72117S
• Inlet Connection: Sweat
• Outlet Connection: Sweat
• Inlet Connection Size: 1 1/4
• Outlet Connection Size: 1 1/4
• Handle Type: Lever
• Material: NL Brass
• Operating Head Rotation: 90
• Valve Size: 1 1/4
• Product Line: Plumbing
• Product Class: 157
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Ball Valves - NL
• Commercial Style: SWT x SWT
• Model #: 5420-476
• Description: 1-1/4 in.
• Ball Material: Brass
• Body Material: Brass
• End Style: C
• Inlet to Outlet Length: 3.78 in
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FPM
• Temperature Rating: -20 to 300 deg F
• Top to Inlet Center: 2.79 in
• Trim Material: Brass Stem
• Manufacturer: A.Y. McDonald
