A.Y. Mcdonald 5420-474 72117S 3/4 Full Port Ball Valve Sweat-nl

Product Description

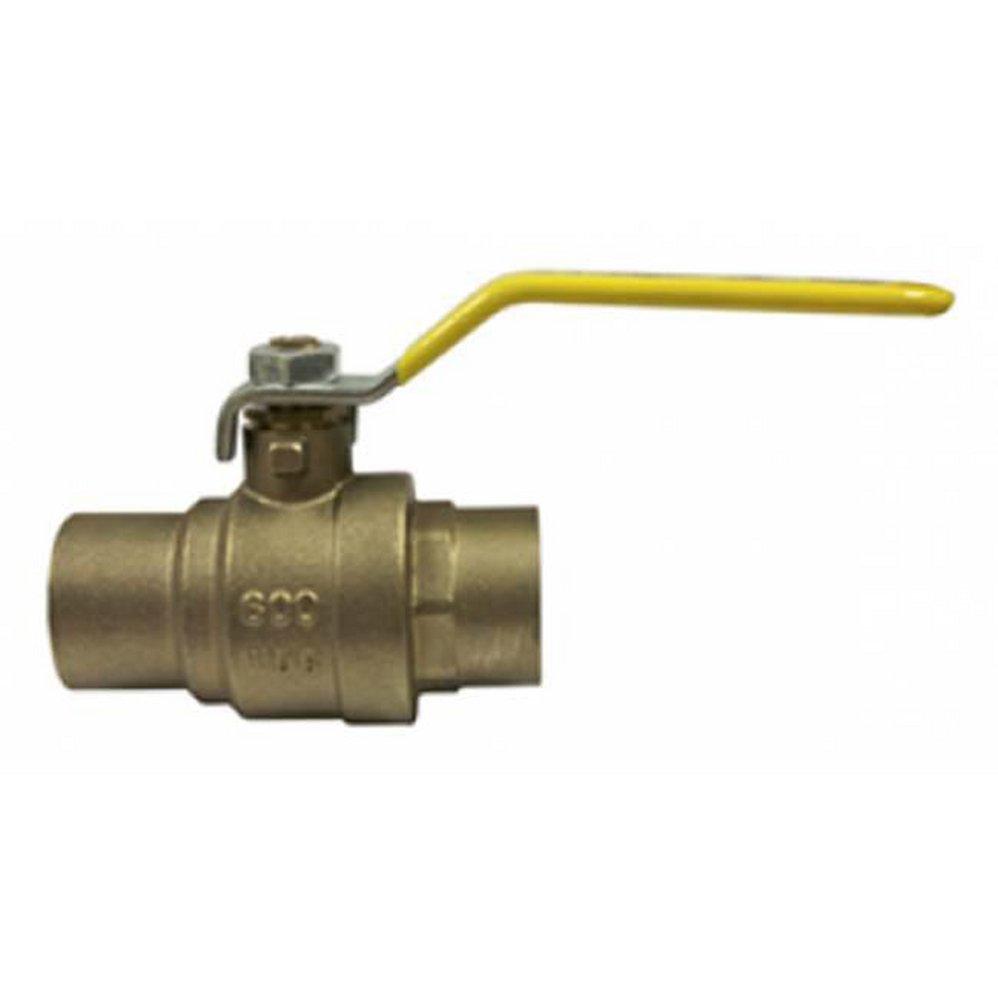

The A.Y. MCDONALD 5420-474 ball valve is designed for a variety of applications. This valve features a full port, allowing for maximum flow capacity. It is suitable for commercial, gas, industrial, oil, residential, and water applications. The valve is constructed from brass and features sweat end connections.

• Lead Law Compliant
• Full Port Opening
• Suitable for Commercial, Gas, Industrial, Oil, Residential, Water applications

Product Highlights

The A.Y. MCDONALD 5420-474 is a brass ball valve with a full port design and sweat connections, ideal for diverse applications.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-474

Technical Specifications

• Product Type: Ball Valve
• ANSI: ANSI 61-4, ANSI B16.18, ANSI B1.20.1
• CSA Certified: CSA B16.44
• Clean Bagged: No
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• Handle Material: Chrome Plated Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2-37/50
• Material: Brass
• NSF Certified: No
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: Commercial, Gas, Industrial, Oil, Residential, Water
• UL Listed: No
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 3/4 in
• Valve Type: Ball Valve
