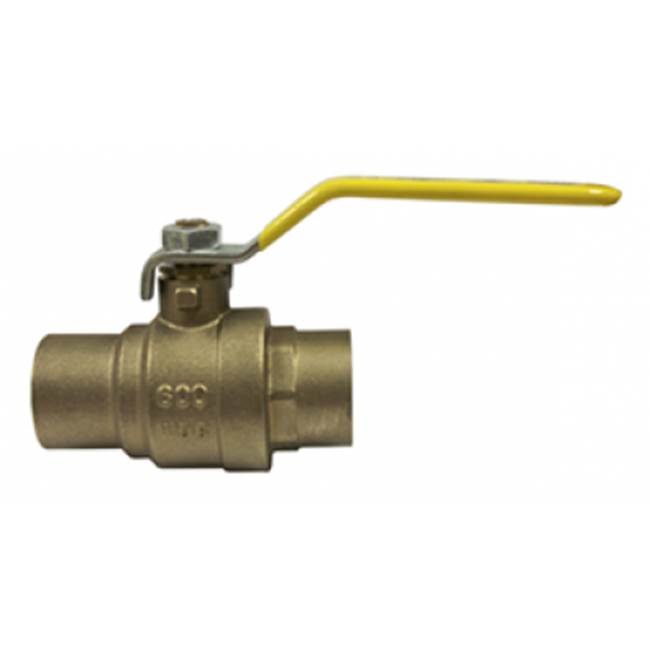

A.Y. Mcdonald 5420-473 Ball Valve 1/2 in

Product Description

The A.Y. MCDONALD 5420-473 ball valve has a 1/2 in nominal size and is designed with a brass body. It is suitable for commercial, industrial, and residential applications. This valve features a full port and is rated to 600 psi WOG with a temperature range of -20 to 300 deg F.

• Packing gland and O-Ring on stem is reliable seal mode
• Handle with vinyl grip
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead

Product Highlights

Full port ball valve with brass body, suitable for various applications and featuring a reliable seal design.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-473

Technical Specifications

• Product Type: Ball Valve
• Body Material: Brass
• Nominal Size: 1/2 in
• Pressure Rating: 600 psi WOG
• Temperature Rating: -20 to 300 deg F
• Port Type: Full
• Ball Material: Brass
• Inlet to Outlet Length: 1.969 in
• Top to Inlet Center: 1.779 in
• Trim Material: Brass Stem
• Softgoods Material: PTFE/FPM
• Manufacturer: A.Y. McDonald
• End Style: C
