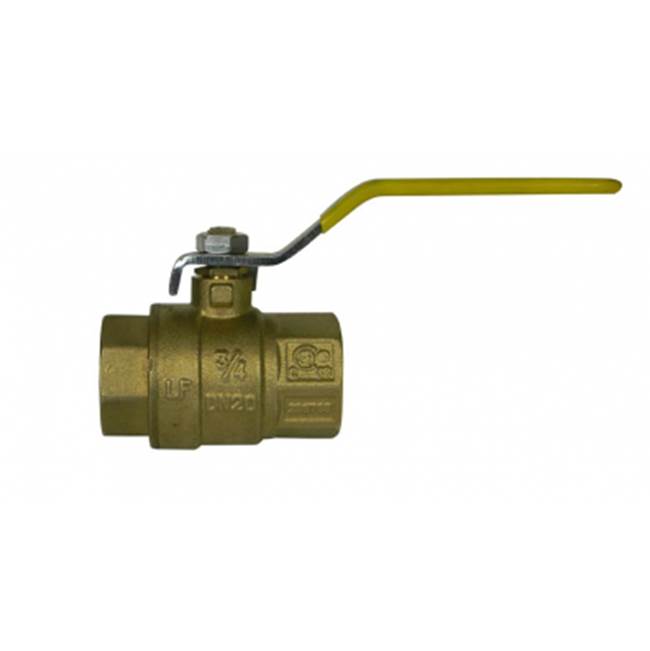

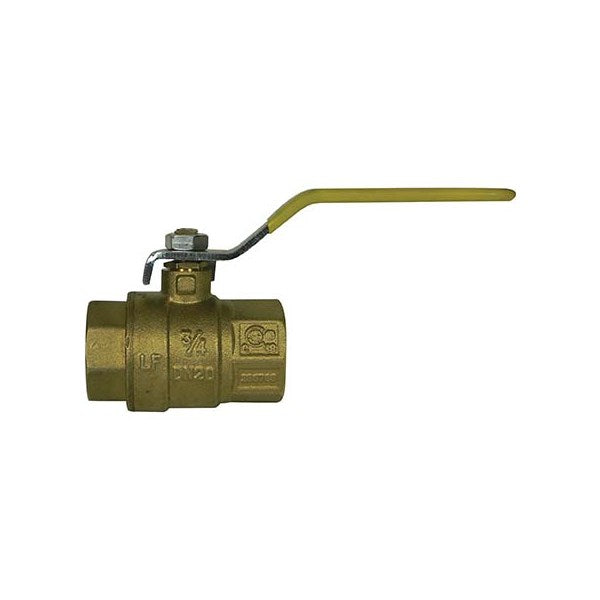

A.Y. Mcdonald 5420-470 72117T Full Port Ball Valve 1 1/4 FNPT-NL

Product Description

The A.Y. MCDONALD 5420-470 72117T full port ball valve is FNPT-NL. This valve is manufactured to MSS-SP-110 and threads conform to ANSI B1.20.1. It features a blowoff proof stem and is NSF / ANSI 61-4 certified. The valve has a reliable seal mode with a packing gland and O-Ring on the stem.

• Full Port Ball Valve
• No-Lead
• FNPT 600 WOG

Product Highlights

Full port ball valve with no-lead construction, ideal for plumbing applications requiring reliable shutoff.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-470
• Country of Origin: USA

Technical Specifications

• Part Type: Ball Valve
• Series: 72117T
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 1 1/4
• Outlet Connection Size: 1 1/4
• Handle Type: Lever
• Material: NL Brass
• Operating Head Rotation: 90
• Valve Size: 1 1/4
• Product Line: Plumbing
• Product Class: 157
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Ball Valves - NL
• Commercial Style: FNPT x FNPT
• Product Type: Ball Valve
• MPN: 5420-470
• Size: 1-1/4 in.
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 3.291 in
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FPM
• Temperature Rating: -20 to 300 deg F
• Top to Inlet Center: 2.537 in
• Trim Material: Brass Stem
• Manufacturer: A.Y. McDonald
