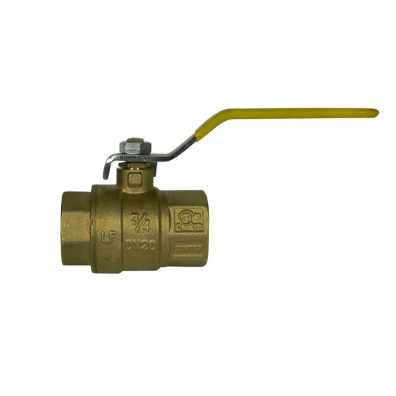

A.Y. Mcdonald 5420-468 Ball Valve With Handle 3/4 in

Product Description

A.Y. McDonald 5420-468 is a No-Lead Ball Valve constructed of heavy-duty no-lead brass, suitable for a full range of liquids and gases in commercial, industrial, and residential applications. The full port design allows for maximum flow with minimum pressure drop. It is designed for water, oil, and gas media.

• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead
• PTFE seat seal/packing and fpm O-ring
• Handle with vinyl grip

Product Highlights

This A.Y. McDonald ball valve features a full port, PTFE/FPM softgoods, and a handle with vinyl grip.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-468
• Country of Origin: China

Technical Specifications

• Brand: A.Y. McDonald
• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.38 in
• Media: Water/Oil/Gas
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FPM
• Temperature Rating: -20 to 300 deg F
• Top to Inlet Center: 1.937 in
• Trim Material: Brass Stem
• Type: Ball Valve
• Connection: FPT
• Lead Free: Lead Free
• Size: 3/4 in
• MPN: 5420-468
• Suitable Media: Air, Water, Fuel, Wastewater, Oil
• Valve Operation: Manual
• Material: Brass
• Style: Ball Valve
