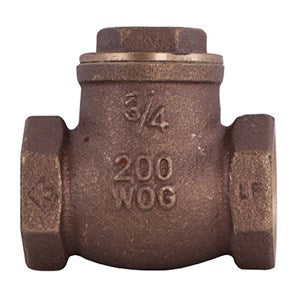

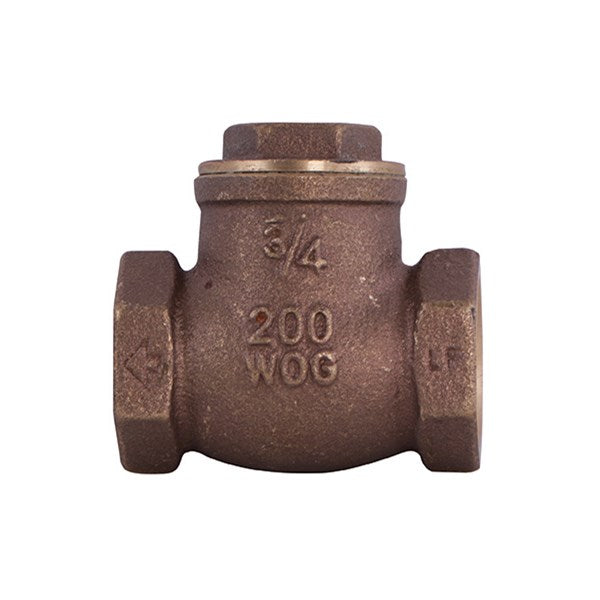

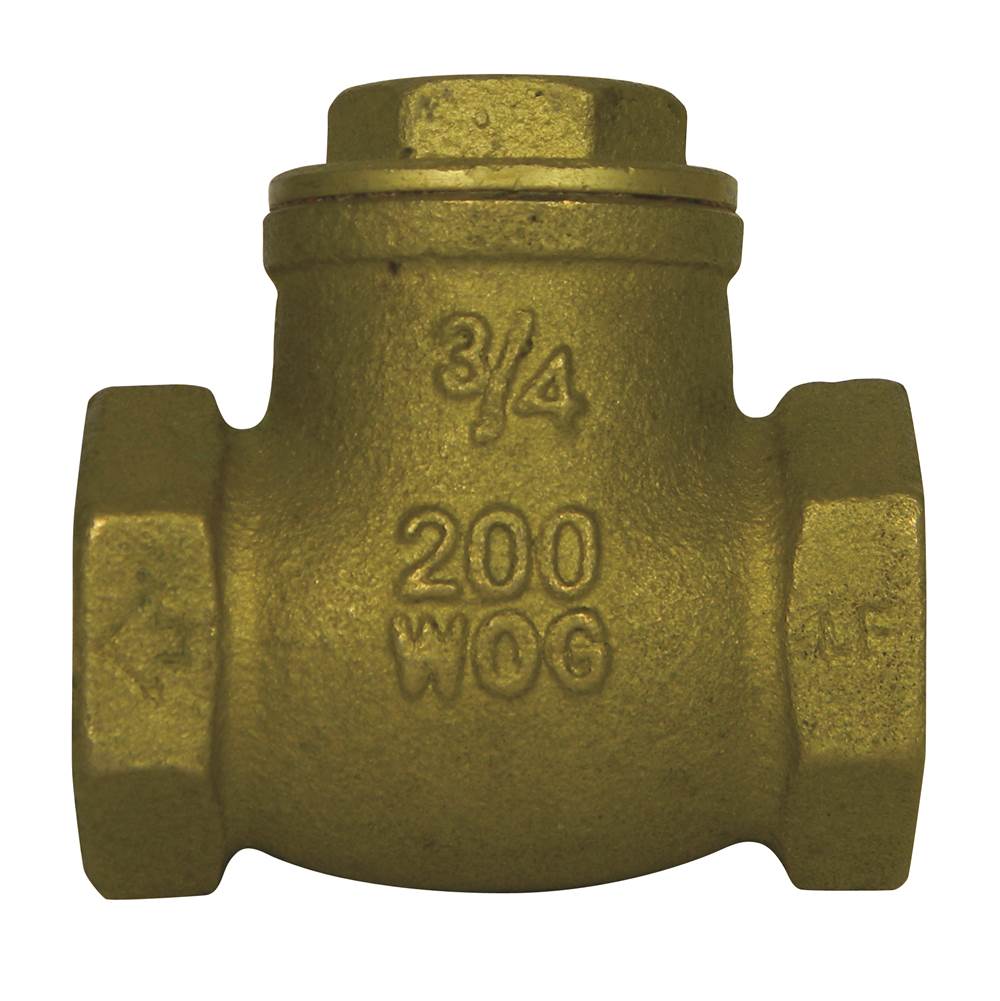

A.Y. Mcdonald 5420-199 Directional Swing Check Valve 3/4 in

Product Description

The A.Y. MCDONALD 5420-199 directional swing check valve is 3/4 inch nominal with an FNPT end style and a brass body. Recommended for residential and commercial applications, these low pressure valves are constructed from heavy duty no-lead brass and provide positive shut-off with various inlet configurations.

• 15 psi working back pressure
• Metal to metal seat
• The weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead

Product Highlights

This swing check valve is ideal for plumbing applications. It has a brass disc and Fiber-H packing.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-199

Technical Specifications

• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.36 in
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 3/4 in
• Series: 72050T
• Softgoods Material: Fiber-H
• Top to Inlet Center: 1.56 in
• Trim Material: Brass
• Type: Directional
• Manufacturer: A.Y. McDonald
• Part Type: Swing Check
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Plumbing Valves
• Commercial Sub Category: Check Valves - NL Brass Swing
• Commercial Style: FNPT x FNPT
• Product Type: Plumbing Valve
• ANSI: ANSI B1.20.1, ANSI B16.18
• Collection: 72050T
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Brass
• Maximum Temperature: 180
• NSF Certified: No
• Pressure Class: 150#
• Recommended Valve Application: Residential, Commercial, Water, Oil, Gas
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: Swing
• Valve Disc Material: Brass
• Valve Seat Material: Metal
• Valve Size: 3/4 in
• Valve Type: Swing Check Valve
