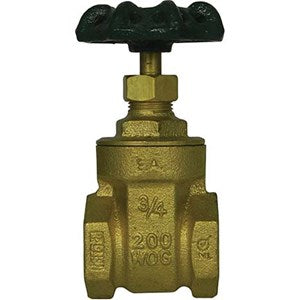

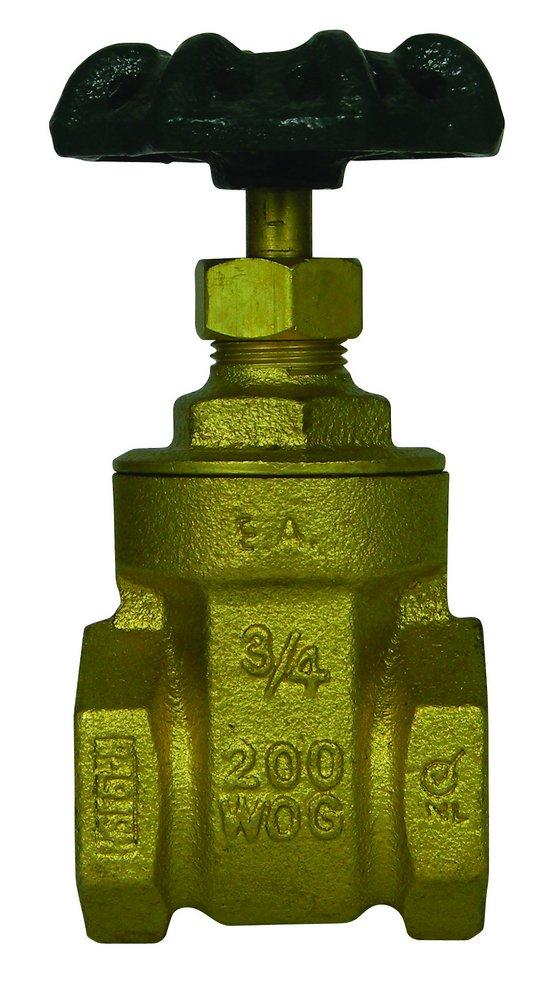

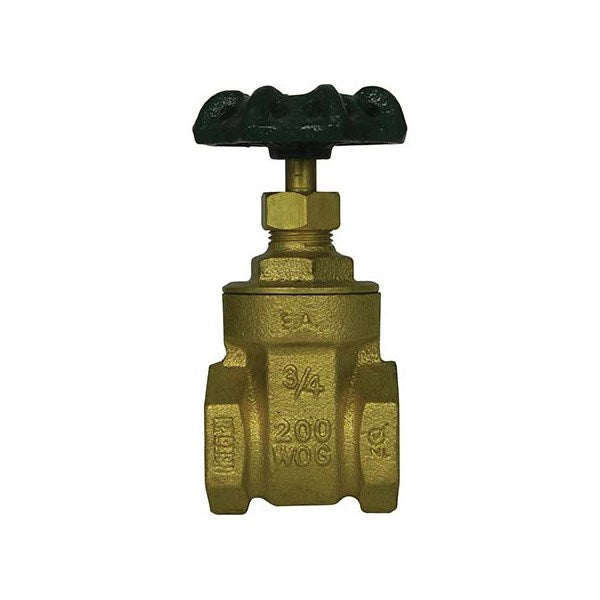

A.Y. Mcdonald 5420-127 Gate Valve 3/4 in Nominal FNPT End Style

Product Description

The A.Y. MCDONALD 5420-127 gate valve is constructed from heavy duty bronze and is suitable for residential and commercial applications. It provides positive shut-off with various inlet configurations. This valve has a 3/4 in nominal size and FNPT end style. It is designed for low-pressure systems.

• Non-rising stem
• No lead: The weighted average of the wetted surface of this no-lead product contacted by consumable water contains less than one quarter of 1% (0.25%) lead
• Solder ends conform to ANSI B16.18

Product Highlights

This A.Y. McDonald gate valve features a bronze body, brass trim, and a handwheel actuator, ensuring durability and ease of use in plumbing systems.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5420-127

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: FNPT
• Hand Wheel Diameter: 2.13 in
• Inlet to Outlet Length: 1.81 in
• Media: Water
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 200 psi
• Softgoods Material: Graphite Gland Packing
• Top to Inlet Center: 3.31 in
• Trim Material: Brass
• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Material: NL Brass
• Valve Size: 3/4
• Temperature Rating: 180 deg F
