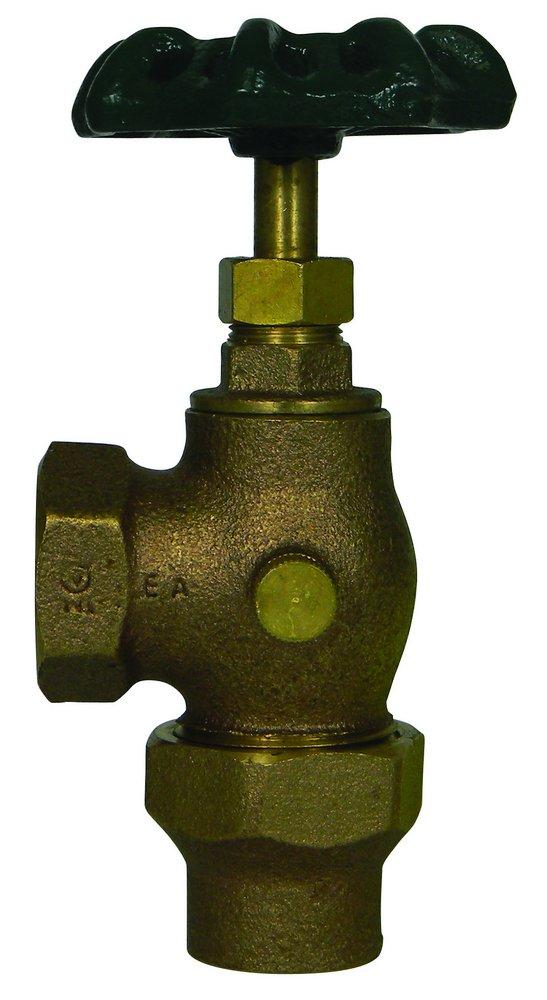

A.Y. McDonald 5420-036 72025 1 in. Flare x FNPT Angle Supply Stop Valve M72025G

Product Description

The A.Y. McDonald 5420-036 is a 1 inch flare x FNPT angle supply stop valve. This valve is designed for use in plumbing systems where water media is involved. The valve operates at a pressure of 125 psi and features a handwheel actuator for ease of use.

• 1 inch nominal size
• Brass body and trim materials
• Directional angle meter valve with waste

Product Highlights

This angle stop valve is ideal for residential and commercial plumbing applications. It features a soft seat design, ensuring a tight seal and reducing leaks. The no-lead construction makes it safe for use with drinking water.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald MFG CO
• Part Number: M72025G

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Flare x FNPT
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 125 psi
• Series: 72025
• Softgoods Material: Rubber Packing
• Top to Inlet Center: 6.38 inches
• Trim Material: Brass
