A.Y. Mcdonald 5419-380 71900exp 1 Adapter Press X Exp Pex

Product Description

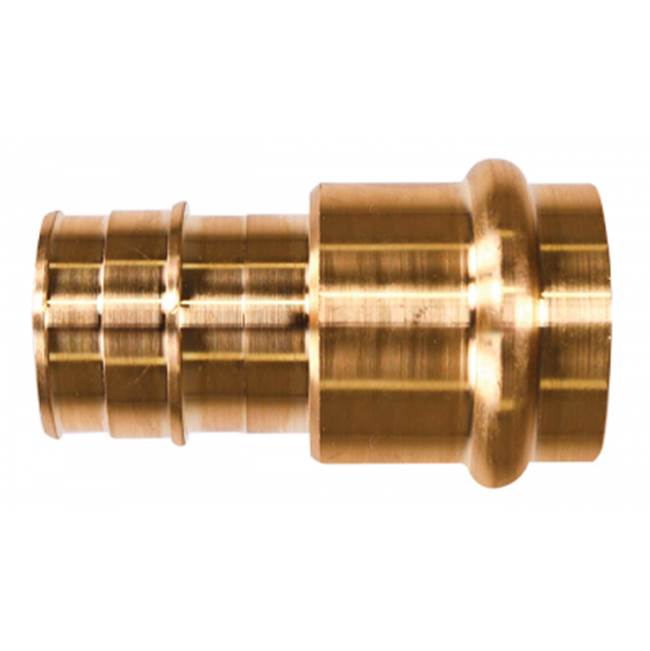

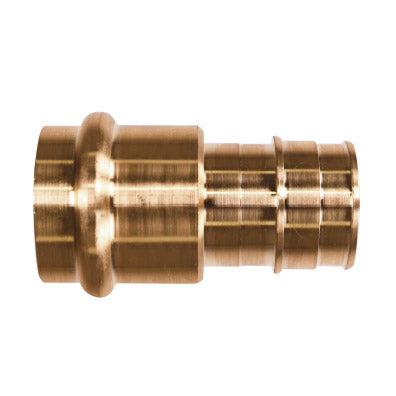

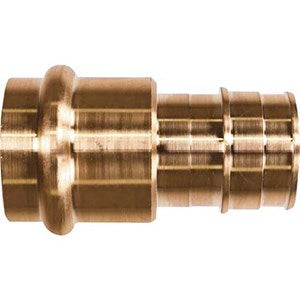

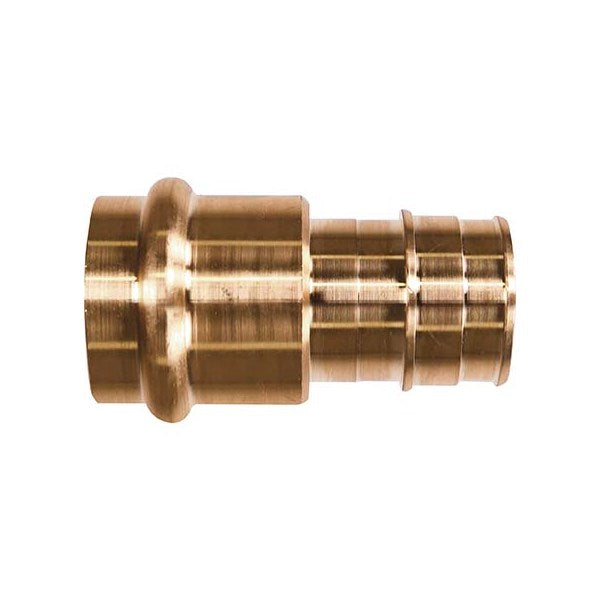

The A.Y. MCDONALD 5419-380 71900EXP adapter joins hard and soft copper pipe on the press end to PEX tubing on the PEX end. Constructed from copper, this fitting is suitable for plumbing or mechanical applications. It is heavy duty and lead free.

• Copper press fitting
• Joins hard and soft copper pipe on press end to PEX tubing on PEX end
• For plumbing or mechanical applications

Product Highlights

This copper press fitting is ideal for plumbing and mechanical applications, connecting copper pipes to PEX tubing.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5419-380

Technical Specifications

• Part Type: Adapter
• Series: 71900EXP
• Inlet Connection: Press
• Outlet Connection: EXP PEX
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Material: Copper
• Product Line: Plumbing
• Product Class: 164
• Commercial Category: Fittings
• Commercial Sub Category: Press Fit
• Commercial Style: Adapters Press x F1960 PEX
• Product Type: Adapter, Press x Expansion
• Application: Plumbing / Mechanical
• Pressure Rating: Press End; 200psi, PEX End; 100psi
• Temperature Rating: Press End; 199 Degrees F, PEX End; 180 Degrees F
• Application Standards: ASTM F1960, IAPMO PS 117, NSF/ANSI 14-20, NSF/ANSI 372, NSF/ANSI 61
